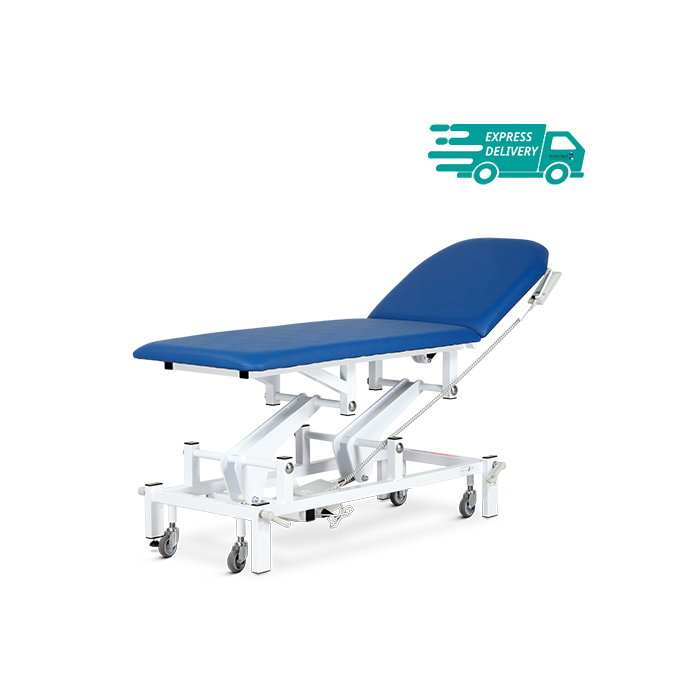

Examination & Treatment Couch, Two Section

Code Description Express Delivery? Overall Dimensions (W x D x H) Weight Enquiry
EC1205/VAQ Hydraulic, Aquamarine 630 x 1790 x 490-950mm 68.8kgs
EC1205/VBB Hydraulic, Bristol Blue 630 x 1790 x 490-950mm 68.8kgs
EC1205/VCB Hydraulic, Coastal Blue 630 x 1790 x 490-950mm 68.8kgs
EC1205/VCH Hydraulic, Chocolate 630 x 1790 x 490-950mm 68.8kgs
EC1205/VFR Hydraulic, Flame Red 630 x 1790 x 490-950mm 68.8kgs
EC1205/VGH Hydraulic, Graphite 630 x 1790 x 490-950mm 68.8kgs
EC1205/VLI Hydraulic, Lime 630 x 1790 x 490-950mm 68.8kgs
EC1205/VOB Hydraulic, Onyx Black 630 x 1790 x 490-950mm 68.8kgs
EC1205/VPE Hydraulic, Peach 630 x 1790 x 490-950mm 68.8kgs
EC1205/VSD Hydraulic, Sand Dune 630 x 1790 x 490-950mm 68.8kgs
EC1210/VAQ Electric, Hand Switch, Aquamarine 630 x 1790 x 490-950mm 68.8kgs
EC1210/VBB Electric, Hand Switch, Bristol Blue 630 x 1790 x 490-950mm 68.8kgs
EC1210/VCB Electric, Hand Switch, Coastal Blue 630 x 1790 x 490-950mm 68.8kgs
EC1210/VCH Electric, Hand Switch, Chocolate 630 x 1790 x 490-950mm 68.8kgs
EC1210/VFR Electric, Hand Switch, Flame Red 630 x 1790 x 490-950mm 68.8kgs
EC1210/VGH Electric, Hand Switch, Graphite 630 x 1790 x 490-950mm 68.8kgs
EC1210/VLI Electric, Hand Switch, Lime 630 x 1790 x 490-950mm 68.8kgs
EC1210/VOB Electric, Hand Switch, Onyx Black 630 x 1790 x 490-950mm 68.8kgs
EC1210/VPE Electric, Hand Switch, Peach 630 x 1790 x 490-950mm 68.8kgs
EC1210/VSD Electric, Hand Switch, Sand Dune 630 x 1790 x 490-950mm 68.8kgs
EC1215/VAQ Electric, Foot Switch, Aquamarine 630 x 1790 x 490-950mm 68.8kgs
EC1215/VBB Electric, Foot Switch, Bristol Blue 630 x 1790 x 490-950mm 68.8kgs
EC1215/VCB Electric, Foot Switch, Coastal Blue 630 x 1790 x 490-950mm 68.8kgs
EC1215/VCH Electric, Foot Switch, Chocolate 630 x 1790 x 490-950mm 68.8kgs
EC1215/VFR Electric, Foot Switch, Flame Red 630 x 1790 x 490-950mm 68.8kgs
EC1215/VGH Electric, Foot Switch, Graphite 630 x 1790 x 490-950mm 68.8kgs
EC1215/VLI Electric, Foot Switch, Lime 630 x 1790 x 490-950mm 68.8kgs
EC1215/VOB Electric, Foot Switch, Onyx Black 630 x 1790 x 490-950mm 68.8kgs
EC1215/VPE Electric, Foot Switch, Peach 630 x 1790 x 490-950mm 68.8kgs
EC1215/VSD Electric, Foot Switch, Sand Dune 630 x 1790 x 490-950mm 68.8kgs
EC1220/VAQ Electric with Electric Backrest, Hand Switch, Aquamarine 630 x 1790 x 490-950mm 71.1kgs
EC1220/VBB Electric with Electric Backrest, Hand Switch, Bristol Blue 630 x 1790 x 490-950mm 71.1kgs
EC1220/VCB Electric with Electric Backrest, Hand Switch, Coastal Blue 630 x 1790 x 490-950mm 71.1kgs
EC1220/VCH Electric with Electric Backrest, Hand Switch, Chocolate 630 x 1790 x 490-950mm 71.1kgs
EC1220/VFR Electric with Electric Backrest, Hand Switch, Flame Red 630 x 1790 x 490-950mm 71.1kgs
EC1220/VGH Electric with Electric Backrest, Hand Switch, Graphite 630 x 1790 x 490-950mm 71.1kgs
EC1220/VLI Electric with Electric Backrest, Hand Switch, Lime 630 x 1790 x 490-950mm 71.1kgs
EC1220/VOB Electric with Electric Backrest, Hand Switch, Onyx Black 630 x 1790 x 490-950mm 71.1kgs
EC1220/VPE Electric with Electric Backrest, Hand Switch, Peach 630 x 1790 x 490-950mm 71.1kgs
EC1220/VSD Electric with Electric Backrest, Hand Switch, Sand Dune 630 x 1790 x 490-950mm 71.1kgs
EC1225/VAQ Electric with Electric Backrest, Foot Switch, Aquamarine 630 x 1790 x 490-950mm 71.1kgs
EC1225/VBB Electric with Electric Backrest, Foot Switch, Bristol Blue 630 x 1790 x 490-950mm 71.1kgs
EC1225/VCB Electric with Electric Backrest, Foot Switch, Coastal Blue 630 x 1790 x 490-950mm 71.1kgs
EC1225/VCH Electric with Electric Backrest, Foot Switch, Chocolate 630 x 1790 x 490-950mm 71.1kgs
EC1225/VFR Electric with Electric Backrest, Foot Switch, Flame Red 630 x 1790 x 490-950mm 71.1kgs
EC1225/VGH Electric with Electric Backrest, Foot Switch, Graphite 630 x 1790 x 490-950mm 71.1kgs
EC1225/VLI Electric with Electric Backrest, Foot Switch, Lime 630 x 1790 x 490-950mm 71.1kgs
EC1225/VOB Electric with Electric Backrest, Foot Switch, Onyx Black 630 x 1790 x 490-950mm 71.1kgs
EC1225/VPE Electric with Electric Backrest, Foot Switch, Peach 630 x 1790 x 490-950mm 71.1kgs
EC1225/VSD Electric with Electric Backrest, Foot Switch, Sand Dune 630 x 1790 x 490-950mm 71.1kgs
Specification Sheet Specification Sheet
FEATURES
  • BS 2838-2: 1991 Examination & general treatment couches, build, performance & safety specifications
  • EN 60601-1:2006+A12:2014 Medical electrical equipment. General requirements for basic safety & essential performance
  • Electric or hydraulic height adjustment
  • Height adjustment from 490 - 950mm
  • Adjustable angle backrest
    • Manual -25 to +90 degrees
    • Electric -22 to +90 degrees
  • Anti-trap gas strut fitted with a release lever used on the backrest section (optional electric)
  • Retractable castors fitted to both ends to assist with movement & positioning
  • One adjustable foot fitted to allow levelling on uneven floors
  • Clearance beneath frame allows access for mobile hoists
  • Electric models (230V ~, 50/60H) fitted with a UK 3 pin plug & available with either a hand or foot switch
  • Hydraulic models use a foot pump pedal positioned on both sides of the couch
  • Seamless & contoured upholstery using flame retardant & anti-bacterial vinyl
  • Frames prepared to accept optional accessories
  • Maximum capacity 225kg
OVERALL DIMENSIONS (w x d x h)
  • 630 x 1790 x 490 - 950mm
STANDARD COLOURS
  • Paint - White
  • Vinyl - Bristol Blue



Accessories
