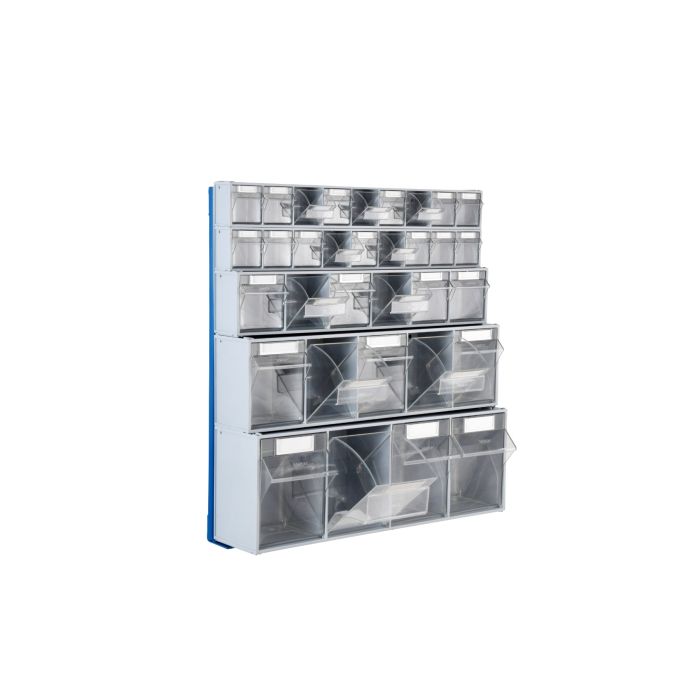

Tilt Bins

FEATURES
  • Available with 4, 5 or 6 tilting compartments
  • Clear bins provide visible storage & assists organisation
  • Bins tilt to 45° allowing easy access of contents & can be removed to aid refilling / cleaning
  • Label holder for easy identification
  • Retaining bar secures bins in place, preventing from tipping forward during transit
  • Supplied with a mild / stainless steel mounting plate
  • Attaches to an overbridge (order separately)
DIMENSIONS (w x d x h)
  • TBIN4 - 143 x 127 x 190mm
  • TBIN5 - 108 x 95 x 146mm
  • TBIN6 - 89 x 67 x 95mm
STANDARD COLOURS
  • Plastic - Cream
  • Paint - Grey White
  • Stainless Steel - Self Colour
Code Description Overall Dimensions (W x D x H) Weight Enquiry
TBIN4/MS Four Compartment 600 x 171 x 207mm 2.3kgs
TBIN5/MS Five Compartment 600 x 135 x 164mm 1.6kgs
TBIN6/MS Six Compartment 600 x 93 x 113mm 0.9kgs
TBIN4/SS Four Compartment, Stainless Steel 600 x 171 x 207mm 2.3kgs
TBIN5/SS Five Compartment, Stainless Steel 600 x 135 x 164mm 1.6kgs
TBIN6/SS Six Compartment, Stainless Steel 600 x 93 x 113mm 0.9kgs
Specification Sheet Specification Sheet
