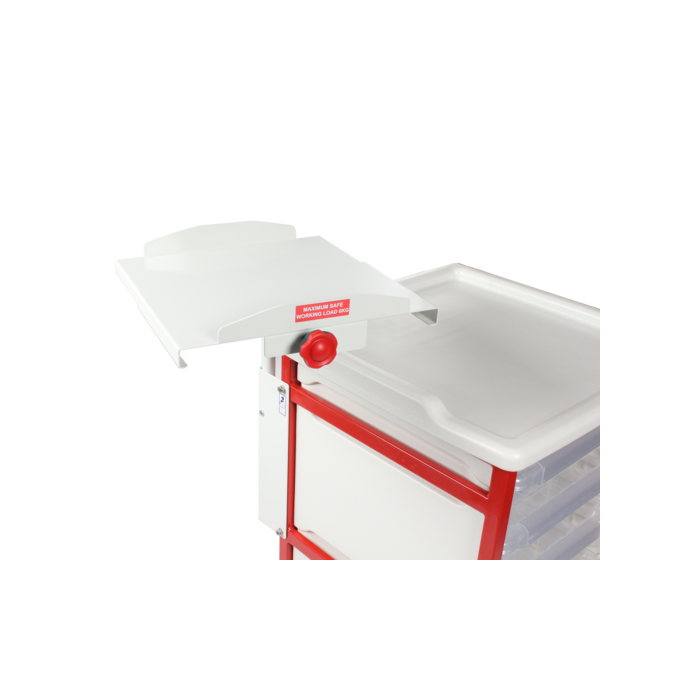

Adjustable Defibrillator Platform

FEATURES
  • Defibrillator supported on a 365mm wide platform & is held securely in place using a clamp (adjusts using a handwheel 205 - 380mm)
  • Platform mounted on an arm that swings 90 degrees from the worksurface & can be locked in position using a tensioning knob (rotates 360 degrees)
  • Base of platform sits 150mm above the top of the trolley
  • Fitted to the rear left-hand side of the trolley
  • Maximum capacity 6kg
  • Factory fitted
OVERALL DIMENSIONS (w x d x h)
  • 477 x 365 x 642mm (increases overall height by 185mm)

STANDARD COLOURS

  • Paint - Grey White



Code Description Express Delivery? Overall Dimensions (W x D x H) Weight Enquiry
CT/DEFIB Adjustable Defibrillator Platform - Caretray 477 x 365 x 642mm 5.5kgs
Specification Sheet Specification Sheet
