Caretray Trolley - Chart

calcActive())">
FEATURES
- Single & double column easy clean fixed height chart trolleys
- Angle adjustable chartboard fitted with a spring clip (adjustable 7 - 45 degrees)
- Lower lip on chartboard to support pens etc.
- Quick & easy disassembly, assists thorough & deep cleaning
- Fully welded mild steel frame
- Recyclable polypropylene one-piece side panels, smooth surfaces & radiused edges assists cleaning (compatible with steam cleaning)
- Side Panels - Incorporate runners with positive stops preventing trays from being accidentally withdrawn (symmetrical design allows tray insertion from either side)
- Carerails fitted to either side (2 x L/H, 1 x R/H) support a wide range of accessories
- Drop down work flap fitted to R/H side
- Translucent, impact-resistant trays & dividers, smooth surfaces & radiused edges assists cleaning (compatible with steam cleaning / high temperature machine washing)
- Trays feature an integral handle with plastic clip-on label cover (coloured label supplied - white, blue, green, yellow & red)
- 100 / 150mm deep trays, can be subdivided in both length & width using removable dividers (max load 5kg)
- 2 x long & 2 x short dividers supplied with each tray
- 100mm pressed steel castors, 2 off braking
DIMENSIONS (w x d x h)
- Overall Dimensions
- Single Column - 550 x 665 x 1115 - 1450mm
- Double Column - 1005 - 665 x 1115 - 1450mm
- Usable Chart Area
- Single Column - 500 x 530mm
- Double Column - 800 x 530mm
- Work Flap - 420 x 290mm (w x d)
- Trays
- Shallow Tray - 355 x 405 x 100mm (internal)
- Deep Tray - 355 x 405 x 150mm (internal)
STANDARD COLOURS
- Paint - White
- Chartboard / Work Flap - White
View the full range:
Need Advice?
Contact Us
Code | Description | Overall Dimensions (W x D x H) | Enquiry |
---|---|---|---|

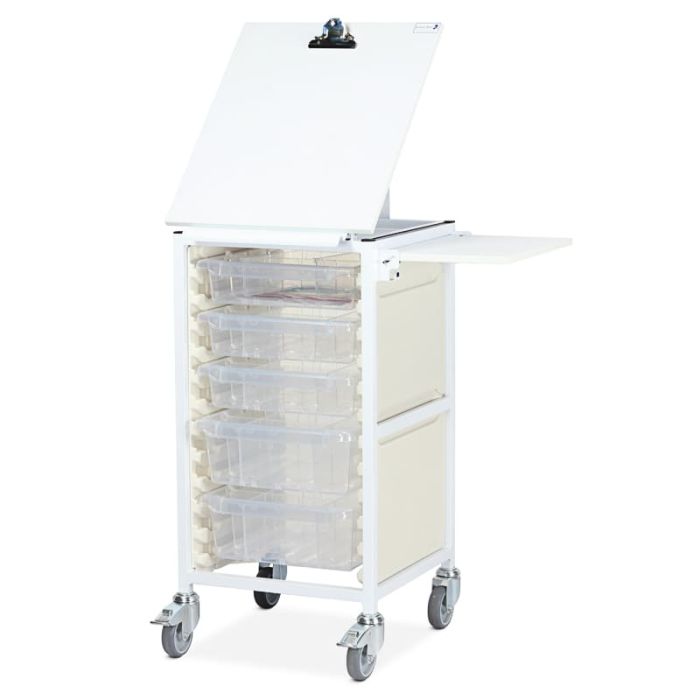

CTCHARM1/10/3S2D | Single Column - 3 x 100mm, 2 x 150mm Trays | 550 x 665 x 1115 - 1450mm | |
CTCHARM1/10/4S1D | Single Column - 4 x 100mm, 1 x 150mm Trays | 550 x 665 x 1115 - 1450mm | |
CTCHARM2/10/6S4D | Double Column - 6 x 100mm, 4 x 150mm Trays | 1005 x 665 x 1115-1450mm | |
CTCHARM2/10/8S2D | Double Column - 8 x 100mm, 2 x 150mm Trays | 1005 x 665 x 1115-1450mm |
