Drug & Medicine Cabinets - Deep Shelves, Single Door

FEATURES
  • Independently tested to BS 2881: 1989 (Security Level One) Specification for Cupboards for
    the Storage of Medicines in Health Care Premises
  • BS 3621 anti-pick & drill, key retaining five pin cylinder lock (supplied with three keys)
  • Adjustable & removable deep shelves (250mm deep)
  • Key profile unique to Hospital Metalcraft Ltd, offering 250,000 differs
  • Compatible with CLIQ®, integrating electronics into high security mechanical disc cylinders &
    keys, combining electronic security & remote management in real time
  • Optional Digital Push Button Lock (does not conform to BS 2881: 1989)
  • 12v DC LED lighting / warning system (model dependent) with volt-free contact to allow
    connection to light / nurse call systems. Requires 100v - 240v ~, 50Hz-60Hz, 0.3A Mains
    supply. Supplied fitted with a UK 3 pin plug. CE marked & conforms to the low voltage
    directives 73/23/EEC & 89/336/EC
  • Lighting transformer housing adds 105mm to the overall height
  • 0.9mm mild steel welded construction
  • Mounting holes provided in back (fixings not included)
  • Modular design allows for easy interchange with HTM 63 storage systems
  • Compatible with our range of CD cabinets for the storage of Controlled Drugs
STANDARD COLOURS
  • Paint - White
Code Description Express Delivery? Overall Dimensions (W x D x H) Compatible CD Cabinets Shelf Configurations Weight Door Opening Enquiry

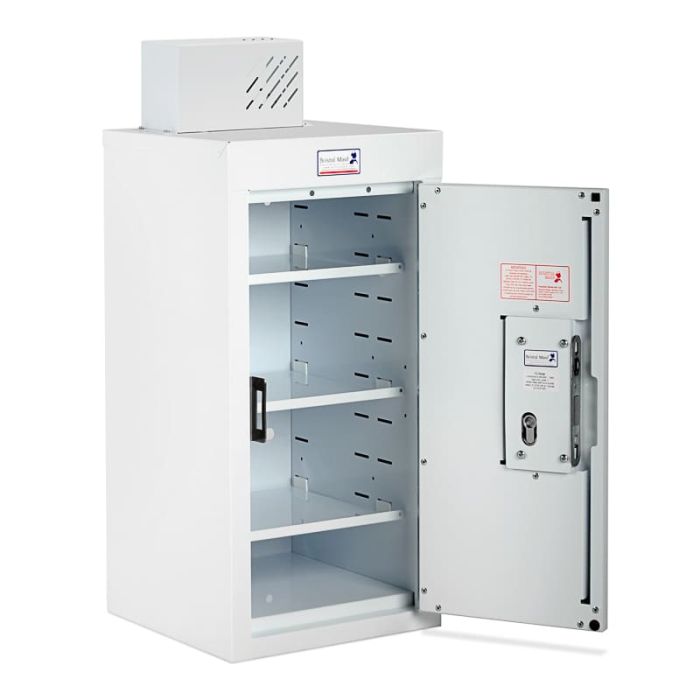

PC336/FS Nomad Cassette Capacity: 13 Cassettes 300 x 300 x 600mm CD005 3 Shelves 16.9kgs Right
PC336/FS/LX Nomad Cassette Capacity: 13 Cassettes 300 x 300 x 600mm CD005 3 Shelves 16kgs Right
PC336/FS/LH Nomad Cassette Capacity: 13 Cassettes 300 x 300 x 600mm CD005 3 Shelves 16.9kgs Left
PC336/FS/LH/LX Nomad Cassette Capacity: 13 Cassettes 300 x 300 x 600mm CD005 3 Shelves 16kgs Left
PC536/FS Nomad Cassette Capacity: 24 Cassettes 500 x 300 x 600mm CD005, CD010 3 Shelves 29.9kgs Right
PC536/FS/LX Nomad Cassette Capacity: 24 Cassettes 500 x 300 x 600mm CD005, CD010 3 Shelves 29kgs Right
PC536/FS/LH Nomad Cassette Capacity: 24 Cassettes 500 x 300 x 600mm CD005, CD010 3 Shelves 29.9kgs Left
PC536/FS/LH/LX Nomad Cassette Capacity: 24 Cassettes 500 x 300 x 600mm CD005, CD010 3 Shelves 29kgs Left
PC636/FS Nomad Cassette Capacity: 32 Cassettes 600 x 300 x 600mm CD005, CD010 3 Shelves 33.9kgs Right
PC636/FS/LX Nomad Cassette Capacity: 32 Cassettes 600 x 300 x 600mm CD005, CD010 3 Shelves 33kgs Right
PC636/FS/LH Nomad Cassette Capacity: 32 Cassettes 600 x 300 x 600mm CD005, CD010 3 Shelves 33.9kgs Left
PC636/FS/LH/LX Nomad Cassette Capacity: 32 Cassettes 600 x 300 x 600mm CD005, CD010 3 Shelves 33kgs Left
PC539/FS Nomad Cassette Capacity: 35 Cassettes 500 x 300 x 600mm CD005, CD010, CD015 4 Shelves 34.9kgs Right
PC539/FS/LX Nomad Cassette Capacity: 35 Cassettes 500 x 300 x 600mm CD005, CD010, CD015 4 Shelves 34.9kgs Right
PC539/FS/LH Nomad Cassette Capacity: 35 Cassettes 500 x 300 x 600mm CD005, CD010, CD015 4 Shelves 34.9kgs Left
PC539/FS/LH/LX Nomad Cassette Capacity: 35 Cassettes 500 x 300 x 600mm CD005, CD010, CD015 4 Shelves 34.9kgs Left
PC639/FS Nomad Cassette Capacity: 44 Cassettes 600 x 300 x 900mm CD005, CD010, CD015 4 Shelves 38.9kgs Right
PC639/FS/LX Nomad Cassette Capacity: 44 Cassettes 600 x 300 x 900mm CD005, CD010, CD015 4 Shelves 38kgs Right
PC639/FS/LH Nomad Cassette Capacity: 44 Cassettes 600 x 300 x 900mm CD005, CD010, CD015 4 Shelves 38.9kgs Left
PC639/FS/LH/LX Nomad Cassette Capacity: 44 Cassettes 600 x 300 x 900mm CD005, CD010, CD015 4 Shelves 38kgs Left
Specification Sheet Specification Sheet
