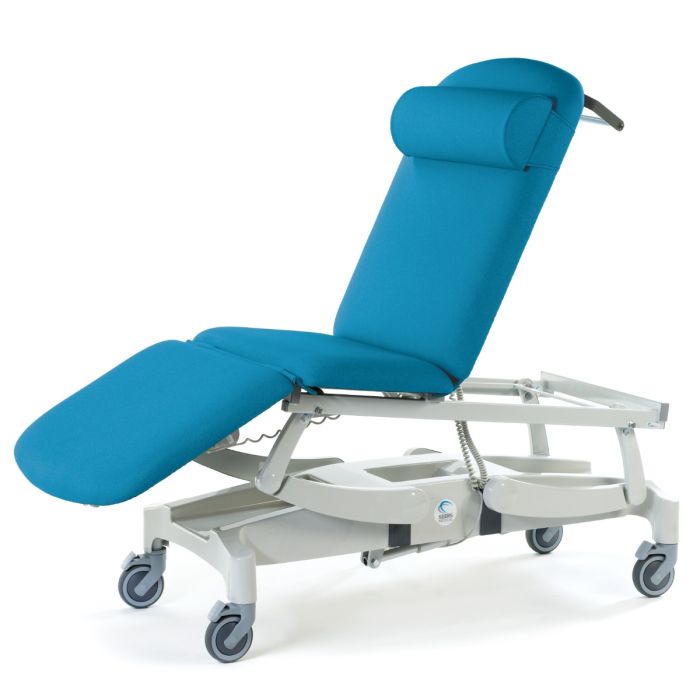

Deluxe Three Section

FEATURES
  • BS 2838-2: 1991 Examination & general treatment couches, build, performance & safety specifications
  • EN 60601-1:2006+A12:2014 Medical electrical equipment. General requirements for basic safety & essential performance
  • Electric height adjustment from 470 - 970mm
  • Electric backrest, adjustable from 0 to +80°
  • Electric Trendelenburg tilt +/-15°
  • Auto electric CPR function
  • Auto-intelligent operation
  • Vertical lifting action to minimise space & provide maximum stability throughout all profiling positions
  • Smooth moulded base cover minimises dirt traps & assists cleaning
  • Available with…
    • 125mm polymer independent braking castors
    • 125mm central locking castors, with steering facility
  • Clearance beneath frame allows access for mobile hoists
  • Fitted with a UK 3 pin plug (230V ~, 50/60Hz) & supplied with a handset with a digital display, providing live feedback of
    height, section & Trendelenburg tilt angle (°)
  • Paper roll holder
  • Head cushion
  • Seamless upholstery using 60mm pressure relieving foam & flame retardant anti-microbial viny
  • Frames prepared to accept optional accessories
  • Maximum capacity 250kg

OVERALL DIMENSIONS (w x d x h)
  • 700 x 1990 x 470 - 970mm

STANDARD COLOURS
  • Paint - White
  • Vinyl - Dark Blue
Download Product PDF
Need Advice? Contact Us
Code Description Overall Dimensions (W x D x H) Enquiry
5EC/MG3475-TMO-CPR Electric Height, Backrest, Foot Sections & Trendelenburg Tilt, Independent Braking Castors 700 x 1990 x 470 - 970mm minus plus
5EC/MG3675-TMO-CPR Electric Height, Backrest, Foot Sections & Trendelenburg Tilt, Central Locking Castors 700 x 1990 x 470 - 970mm minus plus
