Drug & Medicine Cabinets - Shelves & Door Shelves, Double Door Cabinets, Each Door Fitted with a Lock

FEATURES

Independently tested to BS 2881: 1989 (Security Level One) Specification for Cupboards for
the Storage of Medicines in Health Care Premises
BS 3621 anti-pick & drill, key retaining five pin cylinder lock (supplied with three keys)
Adjustable & removable shelves (190mm deep) & door shelves (75mm deep)
Key profile unique to Hospital Metalcraft Ltd, offering 250,000 differs
Compatible with CLIQ®, integrating electronics into high security mechanical disc cylinders &
keys, combining electronic security & remote management in real time
Optional Digital Push Button Lock (does not conform to BS 2881: 1989)
12v DC LED lighting / warning system (model dependent) with volt-free contact to allow
connection to light / nurse call systems. Requires 100v - 240v ~, 50Hz-60Hz, 0.3A Mains
supply. Supplied fitted with a UK 3 pin plug. CE marked & conforms to the low voltage
directives 73/23/EEC & 89/336/EC
Lighting transformer housing adds 105mm to the overall height
0.9mm mild steel welded construction
Mounting holes provided in back (fixings not included)
Modular design allows for easy interchange with HTM 63 storage systems
Compatible with our range of CD cabinets for the storage of Controlled Drugs

STANDARD COLOURS

Code	Description	Overall Dimensions (W x D x H)	Compatible CD Cabinets	Shelf Configurations	Weight

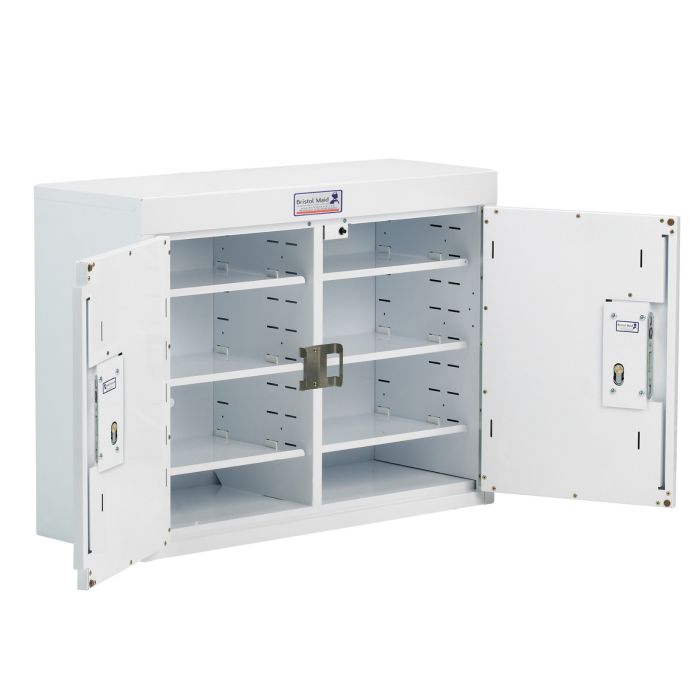

PC836/IND	Shelves & Door Shelves, Double Door Cabinet, Each Door Fitted with a Lock - With Light	800 x 300 x 600mm	CD005	6 Shelves / 4 Door Shelves	40.9kgs
PC836/IND/LX	Shelves & Door Shelves, Double Door Cabinet, Each Door Fitted with a Lock - No Light	800 x 300 x 600mm	CD005	6 Shelves / 4 Door Shelves	40.9kgs
PC839/IND	Shelves & Door Shelves, Double Door Cabinet, Each Door Fitted with a Lock - With Light	800 x 300 x 900mm	CD005, CD010	8 Shelves / 8 Door Shelves	45.9kgs
PC839/IND/LX	Shelves & Door Shelves, Double Door Cabinet, Each Door Fitted with a Lock - No Light	800 x 300 x 900mm	CD005, CD010	8 Shelves / 8 Door Shelves	45.9kgs
PC1036/IND	Shelves & Door Shelves, Double Door Cabinet, Each Door Fitted with a Lock - With Light	1000 x 300 x 600mm	CD005, CD010	6 Shelves / 6 Door Shelves	48.9kgs
PC1036/IND/LX	Shelves & Door Shelves, Double Door Cabinet, Each Door Fitted with a Lock - No Light	1000 x 300 x 600mm	CD005, CD010	6 Shelves / 6 Door Shelves	48.9kgs
PC1039/IND	Shelves & Door Shelves, Double Door Cabinet, Each Door Fitted with a Lock - With Light	1000 x 300 x 900mm	CD005, CD010, CD015	8 Shelves / 8 Door Shelves	48.9kgs
PC1039/IND/LX	Shelves & Door Shelves, Double Door Cabinet, Each Door Fitted with a Lock - No Light	1000 x 300 x 900mm	CD005, CD010, CD015	8 Shelves / 8 Door Shelves	48.9kgs
