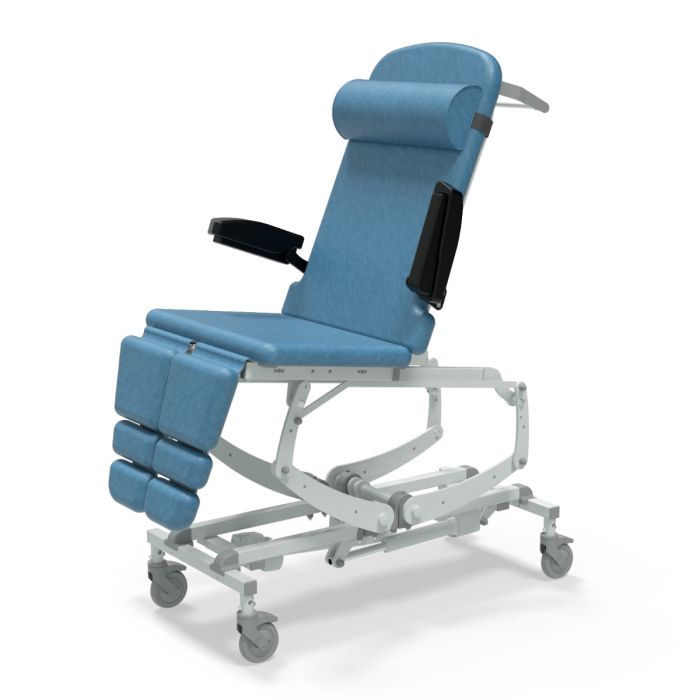

Podiatry,Chiropody & Lower Limb Procedures,Trendelenburg, Mobile

FEATURES
  • BS 2838-2: 1991 Examination & general treatment couches, build, performance & safety specifications
  • EN 60601-1:2006+A12:2014 Medical electrical equipment. General requirements for basic safety & essential performance
  • Electric height adjustment from 530 - 990mm
  • Electric backrest, adjustable from 0 to +90°
  • Electric footrest, adjustable from 0 to +90°
  • Trendelenburg & reverse / anti Trendelenburg to +/-15°
  • CPR facility returns all sections to horizontal &lowers the couch to a suitable height for compressions
  • 125mm polymer independent braking castors
  • Clearance beneath frame allows access for mobile hoists
  • Electric models (230V ~, 50/60Hz) fitted with a UK 3 pin plug & supplied with a handset
  • Hydraulic models use a foot pump pedal positioned on both sides of the couch
  • Paper roll holder
  • Seamless upholstery using flame retardant anti-microbial vinyl
  • Fold down armrests fitted either side
  • Frames prepared to accept optional accessories
  • Maximum capacity 285kg

OVERALL DIMENSIONS (w x d x h)
  • 700 x 1930 x 460 - 950mm

STANDARD COLOURS
  • Paint - White
  • Vinyl - Blue
Download Product PDF
Need Advice? Contact Us
Code Description Overall Dimensions (W x D x H) Enquiry
5EC/NV0495-CLS-DSP/VCA Electric Height, Backrest & Foot Sections, Mobile - Vinyl Blue 700 x 1930 x 460 - 950mm minus plus
5EC/NV0495-CLS-DSP/VSB Electric Height, Backrest & Foot Sections, Mobile - Vinyl Sky Blue 700 x 1930 x 460 - 950mm minus plus
5EC/NV0495-CLS-DSP/VDB Electric Height, Backrest & Foot Sections, Mobile - Vinyl Dark Blue 700 x 1930 x 460 - 950mm minus plus
5EC/NV0495-CLS-DSP/VDG Electric Height, Backrest & Foot Sections, Mobile - Vinyl Dark Grey 700 x 1930 x 460 - 950mm minus plus
5EC/NV0495-CLS-DSP/VBL Electric Height, Backrest & Foot Sections, Mobile - Vinyl Black 700 x 1930 x 460 - 950mm minus plus
