  • Examination & Treatment Chair, Drop End, Three Section, Bariatric


Examination & Treatment Chair, Drop End, Three Section, Bariatric

Code Description Express Delivery? Overall Dimensions (W x D x H) Weight Enquiry

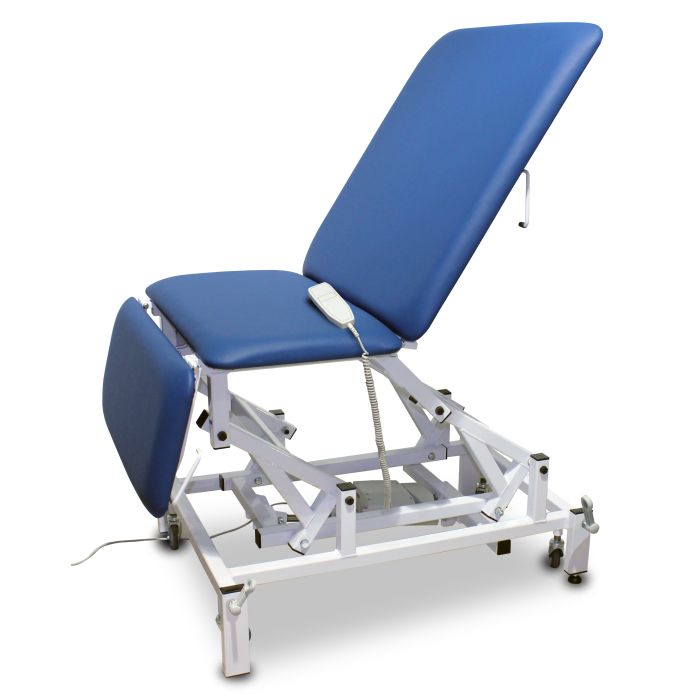

EC4330/VBB Electric, Hand Switch, Bristol Blue 850 x 1790 x 520-950mm 76.7kgs
EC4330/VAQ Electric, Hand Switch, Aquamarine 850 x 1790 x 520-950mm 76.7kgs
EC4330/VFR Electric, Hand Switch, Flame Red 850 x 1790 x 520-950mm 76.7kgs
EC4330/VGH Electric, Hand Switch, Graphite 850 x 1790 x 520-950mm 76.7kgs
EC4330/VSD Electric, Hand Switch, Sand Dune 850 x 1790 x 520-950mm 76.7kgs
EC4330/VOB Electric, Hand Switch, Onyx Black 850 x 1790 x 520-950mm 76.7kgs
EC4330/VLI Electric, Hand Switch, Lime 850 x 1790 x 520-950mm 76.7kgs
EC4330/VCH Electric, Hand Switch, Chocolate 850 x 1790 x 520-950mm 76.7kgs
EC4330/VCB Electric, Hand Switch, Coastal Blue 850 x 1790 x 520-950mm 76.7kgs
EC4330/VPE Electric, Hand Switch, Peach 850 x 1790 x 520-950mm 76.7kgs
EC4335/VBB Electric, Foot Switch, Bristol Blue 850 x 1790 x 520-950mm 76.7kgs
EC4335/VAQ Electric, Foot Switch, Aquamarine 850 x 1790 x 520-950mm 76.7kgs
EC4335/VFR Electric, Foot Switch, Flame Red 850 x 1790 x 520-950mm 76.7kgs
EC4335/VGH Electric, Foot Switch, Graphite 850 x 1790 x 520-950mm 76.7kgs
EC4335/VSD Electric, Foot Switch, Sand Dune 850 x 1790 x 520-950mm 76.7kgs
EC4335/VOB Electric, Foot Switch, Onyx Black 850 x 1790 x 520-950mm 76.7kgs
EC4335/VLI Electric, Foot Switch, Lime 850 x 1790 x 520-950mm 76.7kgs
EC4335/VCH Electric, Foot Switch, Chocolate 850 x 1790 x 520-950mm 76.7kgs
EC4335/VCB Electric, Foot Switch, Coastal Blue 850 x 1790 x 520-950mm 76.7kgs
EC4335/VPE Electric, Foot Switch, Peach 850 x 1790 x 520-950mm 76.7kgs
EC4340/VBB Electric with Electric Backrest, Hand Switch, Bristol Blue 850 x 1790 x 520-950mm 79kgs
EC4340/VAQ Electric with Electric Backrest, Hand Switch, Aquamarine 850 x 1790 x 520-950mm 79kgs
EC4340/VFR Electric with Electric Backrest, Hand Switch, Flame Red 850 x 1790 x 520-950mm 79kgs
EC4340/VGH Electric with Electric Backrest, Hand Switch, Graphite 850 x 1790 x 520-950mm 79kgs
EC4340/VSD Electric with Electric Backrest, Hand Switch, Sand Dune 850 x 1790 x 520-950mm 79kgs
EC4340/VOB Electric with Electric Backrest, Hand Switch, Onyx Black 850 x 1790 x 520-950mm 79kgs
EC4340/VLI Electric with Electric Backrest, Hand Switch, Lime 850 x 1790 x 520-950mm 79kgs
EC4340/VCH Electric with Electric Backrest, Hand Switch, Chocolate 850 x 1790 x 520-950mm 79kgs
EC4340/VCB Electric with Electric Backrest, Hand Switch, Coastal Blue 850 x 1790 x 520-950mm 79kgs
EC4340/VPE Electric with Electric Backrest, Hand Switch, Peach 850 x 1790 x 520-950mm 79kgs
EC4345/VBB Electric with Electric Backrest, Foot Switch, Bristol Blue 850 x 1790 x 520-950mm 79kgs
EC4345/VAQ Electric with Electric Backrest, Foot Switch, Aquamarine 850 x 1790 x 520-950mm 79kgs
EC4345/VFR Electric with Electric Backrest, Foot Switch, Flame Red 850 x 1790 x 520-950mm 79kgs
EC4345/VGH Electric with Electric Backrest, Foot Switch, Graphite 850 x 1790 x 520-950mm 79kgs
EC4345/VSD Electric with Electric Backrest, Foot Switch, Sand Dune 850 x 1790 x 520-950mm 79kgs
EC4345/VOB Electric with Electric Backrest, Foot Switch, Onyx Black 850 x 1790 x 520-950mm 79kgs
EC4345/VLI Electric with Electric Backrest, Foot Switch, Lime 850 x 1790 x 520-950mm 79kgs
EC4345/VCH Electric with Electric Backrest, Foot Switch, Chocolate 850 x 1790 x 520-950mm 79kgs
EC4345/VCB Electric with Electric Backrest, Foot Switch, Coastal Blue 850 x 1790 x 520-950mm 79kgs
EC4345/VPE Electric with Electric Backrest, Foot Switch, Peach 850 x 1790 x 520-950mm 79kgs
Specification Sheet Specification Sheet
FEATURES
  • BS 2838-2: 1991 Examination & general treatment couches, build, performance & safety specifications
  • EN 60601-1:2006+A12:2014 Medical electrical equipment. General requirements for basic safety & essential performance
  • Electric height adjustment
  • Height adjustment from 520 - 950mm
  • Adjustable angle backrest
    • Manual -25 to +90 degrees
    • Electric -22 to +90 degrees
  • Adjustable angle footrest from -90 to +10 degrees
  • Anti-trap gas strut fitted with a release lever used on the back & footrest sections
  • Retractable castors fitted to both ends to assist with movement & positioning
  • One adjustable foot fitted to allow levelling on uneven floors
  • Clearance beneath frame allows access for mobile hoists
  • 230V ~, 50/60H actuator fitted with a UK 3 pin plug & available with a hand or foot switch
  • Seamless upholstery using flame retardant antimicrobial vinyl
  • Frames prepared to accept optional accessories
  • Maximum capacity 325kg
OVERALL DIMENSIONS (w x d x h)
  • 850 x 1790 x 520 - 950mm
STANDARD COLOURS
  • Paint - White
  • Vinyl - Bristol Blue



Accessories
