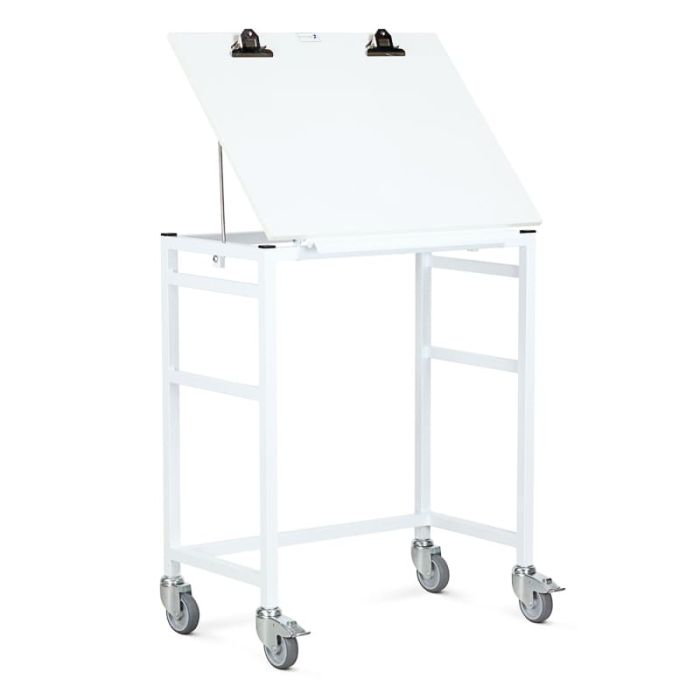

Chart Workstations - Fixed Height

FEATURES

Fixed height chart workstation
Angle adjustable chartboard fitted with a spring clip (0 - 50 degrees)
Usable chart area 800 x 530mm (w x h)
Lower lip on chartboard to support pens etc.
Fully welded mild steel frame
Carerails fitted to each side of the trolley (2 x L/H, 1 x R/H) to support a wide range of accessories
Drop down work flap fitted to R/H side
100mm pressed steel castors, 2 off braking

DIMENSIONS (w x d x h)

Overall Dimensions - 1010 x 550 - 620 x 1040 - 1450mm
Usable Chart Area - 800 x 530mm
Work Flap - 420 x 290mm (w x d)

STANDARD COLOURS

Paint - White
Chartboard / Work Flap - White

Code	Description	Express Delivery?	Overall Dimensions (W x D x H)	Weight	Enquiry
CWF/80	Chart Workstation - Fixed Height		1010 x 550 - 620 x 1040 - 1450mm	23kgs
CWF/80/SP	Chart Workstation - Fixed Height, Storage Pocket		1010 x 550 - 620 x 1040 - 1450mm	33kgs
