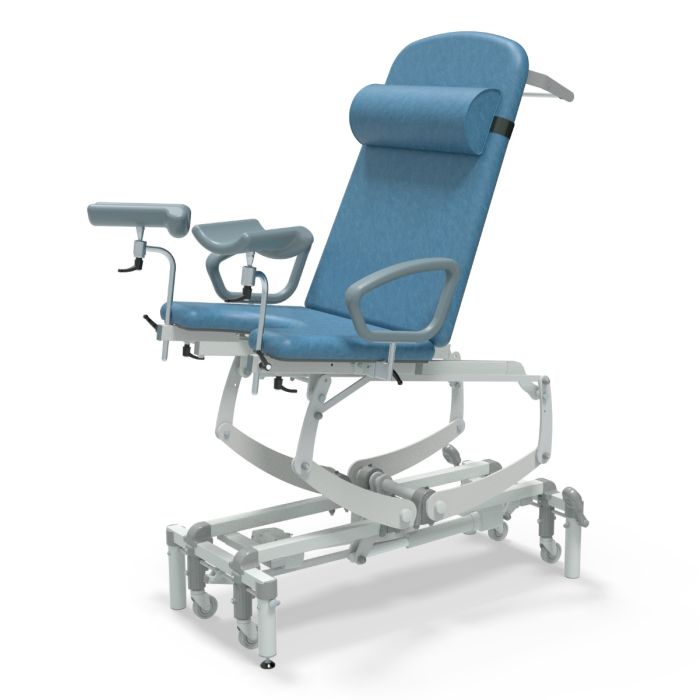

Gynae, Electric Backrest, Trendelenburg Tilt

calcActive())">
FEATURES
- BS 2838-2: 1991 Examination & general treatment couches, build, performance & safety specifications
- EN 60601-1:2006+A12:2014 Medical electrical equipment. General requirements for basic safety & essential performance
- Electric height adjustment from 520 - 1000mm (15 Seconds)
- Electric backrest, adjustable from 0 to +90°
- Electric Trendelenburg and reverse/anti Trendelenburg +/- 15°
- Retractable castors fitted to both ends to assist with movement and positioning
- One Adjustable foot fitted to allow levelling on uneven floors
- Clearance beneath frame allows access for mobile hoists
- Electric models (230V ~, 50/60Hz) fitted with a UK 3 pin plug & supplied with a handset
- Paper roll holder
- Seamless upholstery using flame retardant anti-microbial vinyl
- Supplied with a pair of multi-adjustable leg supports & side support loops
- Seat section removable for cleaning
- Frames prepared to accept optional accessories
- Maximum capacity 285kg
OVERALL DIMENSIONS (w x d x h)
- 700 x 1750 x 520 - 1000mm
STANDARD COLOURS
- Paint - White
- Vinyl - Blue
View the full range:
Need Advice?
Contact Us
Code | Description | Overall Dimensions (W x D x H) | Enquiry |
---|---|---|---|
5EC/NV8583-CLS-DSP/VCA | Electric Height, Backrest & Trendelenburg Tilt, Retractable Castors - Vinyl Blue | 700 x 1750 x 520 - 1000mm | |
5EC/NV8583-CLS-DSP/VSB | Electric Height, Backrest & Trendelenburg Tilt, Retractable Castors - Vinyl Sky Blue | 700 x 1750 x 520 - 1000mm | |
5EC/NV8583-CLS-DSP/VDB | Electric Height, Backrest & Trendelenburg Tilt, Retractable Castors - Vinyl Dark Blue | 700 x 1750 x 520 - 1000mm | |
5EC/NV8583-CLS-DSP/VDG | Electric Height, Backrest & Trendelenburg Tilt, Retractable Castors - Vinyl Dark Grey | 700 x 1750 x 520 - 1000mm | |
5EC/NV8583-CLS-DSP/VBL | Electric Height, Backrest & Trendelenburg Tilt, Retractable Castors - Vinyl Black | 700 x 1750 x 520 - 1000mm |
