HTM71 Racking

FEATURES
  • Fully configurable freestanding modular racking for use with 600 x 400mm modular trays & baskets
  • Available to suit 600 or 400mm insertions
    • Type A - 600mm insertion
    • Type B - 400mm insertion
  • Trays & baskets supported on adjustable moulded plastic / glass fibre runners
  • Runners can be positioned horizontal or angled (approx. 25 degrees - requires angle adaptor brackets)
  • Integral stops on the runners allow trays / baskets to be accessible in two positions
    • Straight (approx. 5 degrees)
    • Angled (approx. 25 degrees)
  • Runners offer pass through facility allowing access on either side
  • Anodised extruded aluminium uprights & cross members
  • Bolted construction using high quality moulded fixings provides rigidity & allows the system to be altered easily
  • Available as either static or mobile units
    • Static - Adjustable feet allow levelling on uneven floors
    • Mobile - 50/80mm pressed steel castors
  • Optional wall mounting brackets allow static units to be fixed securely to the wall (when units are loaded over 100kg)
  • Supplied for self-assembly
  • Room Design & Installation Service - Contact us for more information
DIMENSIONS (w x d x h)
  • Static
    • Type A - 600mm Insertion
      • Single Bay - 494 x 642 x 1940mm
      • Double Bay - 937 x 642 x 1940mm
    • Type B - 400mm Insertion
      • Single Bay - 694 x 442 x 1940mm
      • Double Bay - 1337 x 442 x 1940mm
  • Mobile
    • Type A - 600mm Insertion
      • Single Bay - 494 x 642 x 1996mm
      • Double Bay - 937 x 642 x 1996mm
    • Type B - 400mm Insertion
      • Single Bay - 694 x 442 x 1996mm
      • Double Bay - 1337 x 442 x 1996mm
STANDARD COLOURS
  • Uprights & Cross Members - Anodised Aluminium
  • Plastic Mouldings - Green / Grey
Code Description Express Delivery? Overall Dimensions (W x D x H) Weight Enquiry
4HH/HTM71/S1/600 Static, Single Bay, 600mm Insertion 494 x 642 x 1940mm 10.3kgs

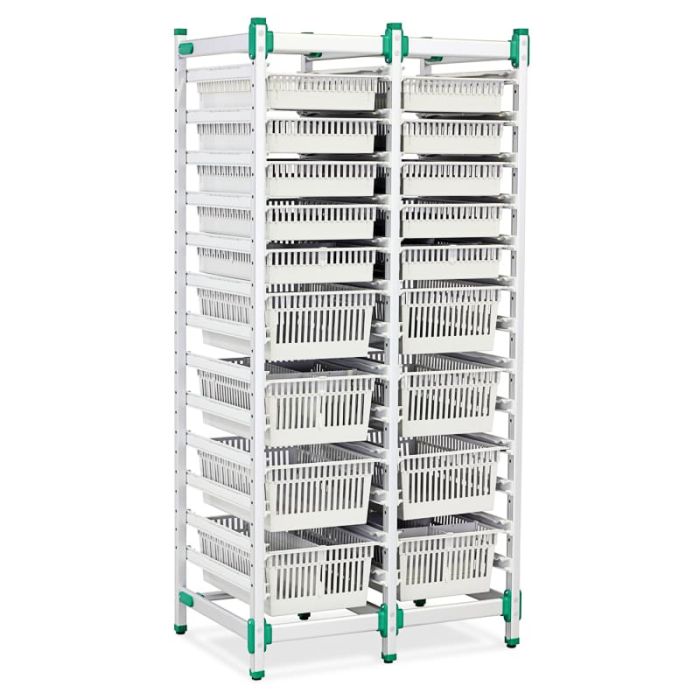

4HH/HTM71/S2/600 Static, Double Bay, 600mm Insertion 937 x 642 x 1940mm 16.1kgs
4HH/HTM71/S1/400 Static, Single Bay, 400mm Insertion 694 x 442 x 1940mm 10.2kgs
4HH/HTM71/S2/400 Static, Double Bay, 400mm Insertion 1337 x 442 x 1940mm 16.3kgs
4HH/HTM71/M51/600 Mobile, Single Bay, 600mm Insertion 494 x 642 x 1996mm 11.1kgs
4HH/HTM71/M52/600 Mobile, Double Bay, 600mm Insertion 937 x 642 x 1996mm 17.3kgs
4HH/HTM71/M51/400 Mobile, Single Bay, 400mm Insertion 694 x 442 x 1996mm 11kgs
4HH/HTM71/M52/400 Mobile, Double Bay, 400mm Insertion 1337 x 442 x 1996mm 17.5kgs
