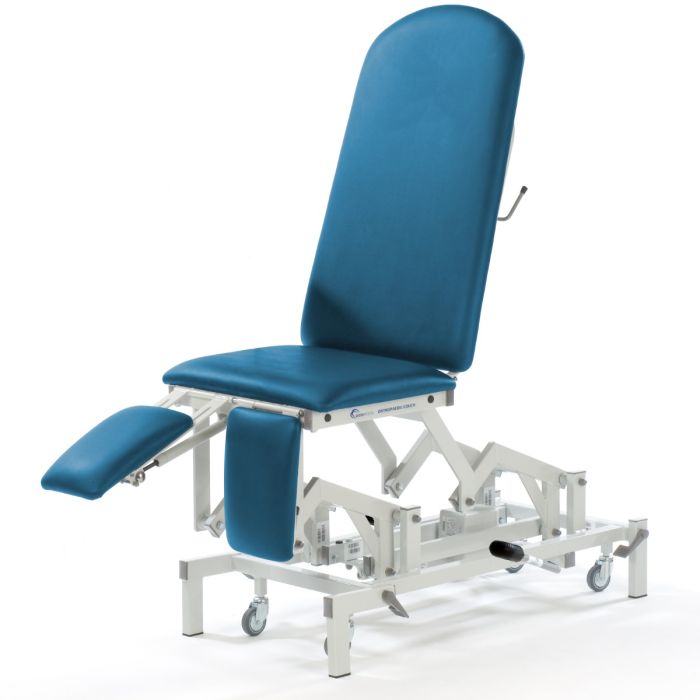

Orthopaedic

FEATURES
  • BS 2838-2: 1991 Examination & general treatment couches, build, performance & safety specifications
  • EN 60601-1:2006+A12:2014 Medical electrical equipment. General requirements for basic safety & essential performance
  • Electric or hydraulic height adjustment from 520 - 1060mm
  • Gas / electric backrest, adjustable from 0 to +80°
  • Gas / electric foot sections, adjustable from 0 to -85°
  • Gas assisted sections feature an anti-trap design
  • Footrests extend for tall patients
  • Model 5EC/SM5575-DFL fitted with electric Trendelenburg tilt +/-15°
  • Retractable castors fitted to both ends to assist with movement & positioning
  • One adjustable foot fitted to allow levelling on uneven floors
  • Clearance beneath frame allows access for mobile hoists
  • Electric models (230V ~, 50/60Hz) fitted with a UK 3 pin plug & supplied with a handset
  • Hydraulic models use a foot pump pedal positioned on both sides of the couch
  • Seamless upholstery using flame retardant anti-microbial vinyl
  • Frames prepared to accept optional accessories
  • Maximum capacity 240kg

OVERALL DIMENSIONS (w x d x h)
  • 650 x 1800 x 520 - 1060mm

STANDARD COLOURS
  • Paint - White
  • Vinyl - Blue

View the full range:

Examination / Treatment Couches & Chairs Orthopaedic
Download Product PDF
Need Advice? Contact Us
Code Description Overall Dimensions (W x D x H) Enquiry
5EC/SM5555-DFL Hydraulic Height, Gas Assist Backrest & Foot Section 650 x 1800 x 520 - 1060mm minus plus
5EC/SM5565-TMO-1WH Electric Height, Gas Assist Backrest & Foot Sections 650 x 1800 x 520 - 1060mm minus plus
5EC/SM5575-TMO-2WH Electric Height & Backrest, Gas Assist Foot Sections 650 x 1800 x 520 - 1060mm minus plus
