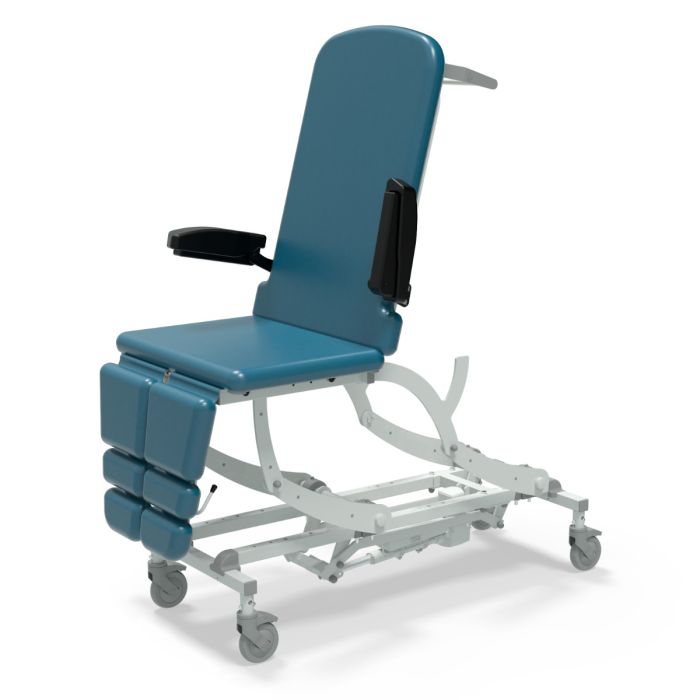

Podiatry,Chiropody & Lower Limb Procedures,Fold-Down Arms,Mobile

FEATURES
  • BS 2838-2: 1991 Examination & general treatment couches, build, performance & safety specifications
  • EN 60601-1:2006+A12:2014 Medical electrical equipment. General requirements for basic safety & essential performance
  • Electric height adjustment from 530 - 990mm
  • Electric backrest, adjustable from 0 to +90°
  • Electric footrests, adjustable from 0 to -90°
  • Trendelenburg & reverse / anti Trendelenburg to +/-15°
  • CPR facility returns all sections to horizontal & lowers the couch to a suitable height for compressions
  • 125mm polymer independent braking castors
  • Clearance beneath frame allows access for mobile hoists
  • Fitted with a UK 3 pin plug (230V ~, 50/60Hz) & supplied with a handset with a digital display, providing live feedback of
    height, section & Trendelenburg tilt angle (°). Optional foot switch operation
  • Paper roll holder
  • Seamless upholstery using flame retardant anti-microbial vinyl
  • Fold down armrests fitted either side
  • Frames prepared to accept optional accessories
  • Maximum capacity 285kg

OVERALL DIMENSIONS (w x d x h)
  • 700 x 1930 x 460 - 950mm

STANDARD COLOURS
  • Paint - White
  • Vinyl - Sky Blue
Download Product PDF
Need Advice? Contact Us
Code Description Overall Dimensions (W x D x H) Enquiry
5EC/NV0475-CLS-2WH/VCA Electric Height & Backrest, Gas Assist Foot Sections, Mobile - Vinly Blue 700 x 1930 x 460 - 950mm minus plus
5EC/NV0475-CLS-2WH/VSB Electric Height & Backrest, Gas Assist Foot Sections, Mobile - Vinly Sky Blue 700 x 1930 x 460 - 950mm minus plus
5EC/NV0475-CLS-2WH/VDB Electric Height & Backrest, Gas Assist Foot Sections, Mobile - Vinly Dark Blue 700 x 1930 x 460 - 950mm minus plus
5EC/NV0475-CLS-2WH/VDG Electric Height & Backrest, Gas Assist Foot Sections, Mobile - Vinly Dark Grey 700 x 1930 x 460 - 950mm minus plus
5EC/NV0475-CLS-2WH/VBL Electric Height & Backrest, Gas Assist Foot Sections, Mobile - Vinly Black 700 x 1930 x 460 - 950mm minus plus
