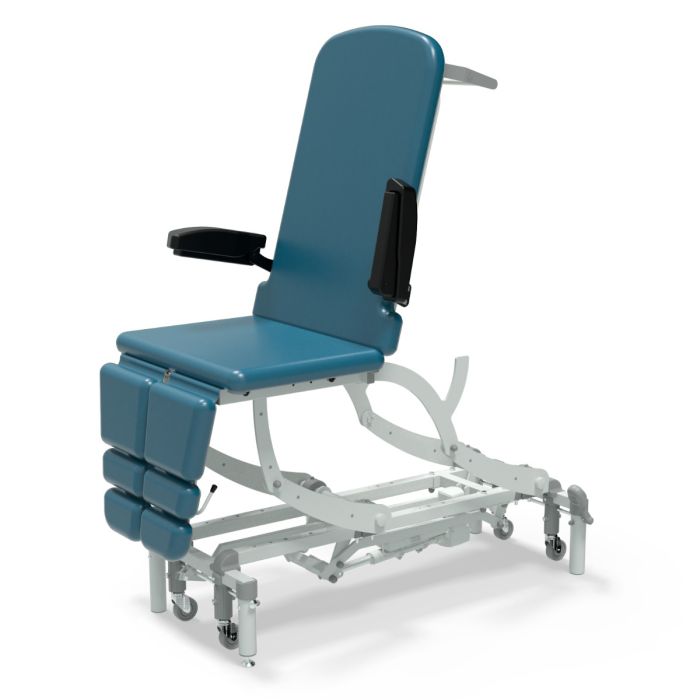

Podiatry, Chiropody & Lower Limb Procedures, Fold-Down Arms

FEATURES
  • BS 2838-2: 1991 Examination & general treatment couches, build, performance & safety specifications
  • EN 60601-1:2006+A12:2014 Medical electrical equipment. General requirements for basic safety & essential performance
  • Electric height adjustment from 460 - 950mm (15 seconds)
  • Electric backrest, adjustable from 0 to +90°
  • Gas assist foot sections, adjustable from 0 to -84°
  • Gas assisted sections feature an anti-trap design
  • Retractable castors fitted to both ends to assist with movement & positioning
  • One adjustable foot fitted to allow levelling on uneven floors
  • Clearance beneath frame allows access for mobile hoists
  • Fitted with a UK 3 pin plug (230V ~, 50/60Hz) & supplied with a handset
  • Paper roll holder
  • Seamless upholstery using flame retardant anti-microbial vinyl
  • Fold down armrests fitted either side
  • Frames prepared to accept optional accessories
  • Maximum capacity 265kg

OVERALL DIMENSIONS (w x d x h)
  • 700 x 1930 x 460 - 950mm

STANDARD COLOURS
  • Paint - White
  • Vinyl - Sky Blue
Download Product PDF
Need Advice? Contact Us
Code Description Overall Dimensions (W x D x H) Enquiry
5EC/NV0575-CLS-2WH/VCA Electric Height & Backrest, Gas Assist Foot Sections - Vinyl Blue 700 x 1930 x 460 - 950mm minus plus
5EC/NV0575-CLS-2WH/VSB Electric Height & Backrest, Gas Assist Foot Sections - Vinyl Sky Blue 700 x 1930 x 460 - 950mm minus plus
5EC/NV0575-CLS-2WH/VDB Electric Height & Backrest, Gas Assist Foot Sections - Vinyl Dark Blue 700 x 1930 x 460 - 950mm minus plus
5EC/NV0575-CLS-2WH/VDG Electric Height & Backrest, Gas Assist Foot Sections - Vinyl Dark Grey 700 x 1930 x 460 - 950mm minus plus
5EC/NV0575-CLS-2WH/VBL Electric Height & Backrest, Gas Assist Foot Sections - Vinyl Black 700 x 1930 x 460 - 950mm minus plus
