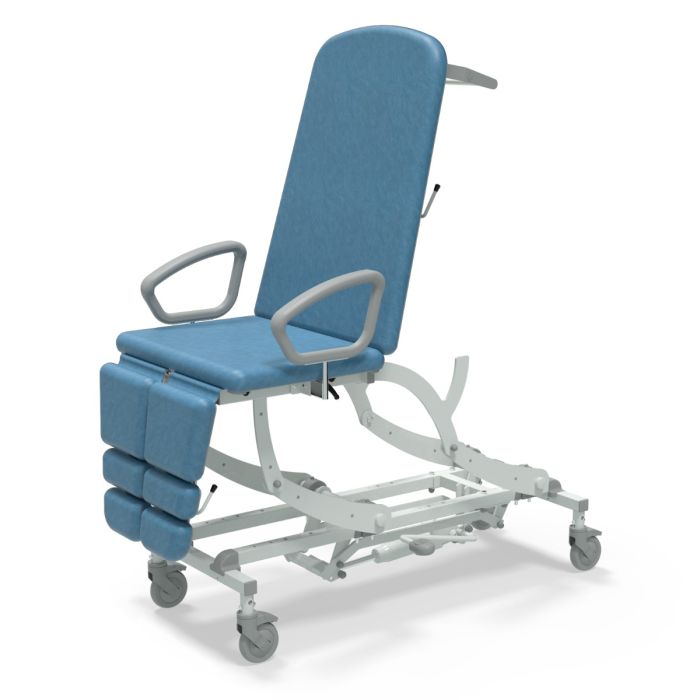

Podiatry, Chiropody & Lower Limb Procedures, Side Loops, Mobile
FEATURES
- BS 2838-2: 1991 Examination & general treatment couches, build, performance & safety specifications
- EN 60601-1:2006+A12:2014 Medical electrical equipment. General requirements for basic safety & essential performance
- Electric or hydraulic height adjustment from 460 - 950mm
- Gas assist backrest, adjustable from 0 to +90°
- Gas assisted sections feature an anti-trap design
- Retractable castors fitted to both ends to assist with movement & positioning
- One adjustable foot fitted to allow levelling on uneven floors
- Clearance beneath frame allows access for mobile hoists
- Electric models (230V ~, 50/60Hz) fitted with a UK 3 pin plug & supplied with a handset
- Hydraulic models use a foot pump pedal positioned on both sides of the couch
- Paper roll holder
- Seamless upholstery using flame retardant anti-microbial vinyl
- Side support loops fitted either side(removable)
- Seat section removable for cleaning
- Frames prepared to accept optional accessories
- Maximum capacity 265kg
OVERALL DIMENSIONS (w x d x h)
- 700 x 1930 x 460 - 950mm
STANDARD COLOURS
- Paint - White
- Vinyl - Blue
View the full range:
Need Advice?
Contact Us
| Code | Description | Overall Dimensions (W x D x H) | Enquiry |
|---|---|---|---|
| 5EC/NV0455-CLS/VCA | Hydraulic Height, Gas Assist Backrest & Foot Sections, Mobile - Vinyl Blue | 700 x 1930 x 460 - 950mm | |
| 5EC/NV0455-CLS/VSB | Hydraulic Height, Gas Assist Backrest & Foot Sections, Mobile - Vinyl Sky Blue | 700 x 1930 x 460 - 950mm | |
| 5EC/NV0455-CLS/VDB | Hydraulic Height, Gas Assist Backrest & Foot Sections, Mobile - Vinyl Dark Blue | 700 x 1930 x 460 - 950mm | |
| 5EC/NV0455-CLS/VDG | Hydraulic Height, Gas Assist Backrest & Foot Sections, Mobile - Vinyl Dark Grey | 700 x 1930 x 460 - 950mm | |
| 5EC/NV0455-CLS/VBL | Hydraulic Height, Gas Assist Backrest & Foot Sections, Mobile - Vinyl Black | 700 x 1930 x 460 - 950mm | |
| 5EC/NV0465-CLS-1WH/VCA | Electric Height, Gas Assist Backrest & Foot Sections, Mobile - Vinyl Blue | 700 x 1930 x 460 - 950mm | |
| 5EC/NV0465-CLS-1WH/VSB | Electric Height, Gas Assist Backrest & Foot Sections, Mobile - Vinyl Sky Blue | 700 x 1930 x 460 - 950mm | |
| 5EC/NV0465-CLS-1WH/VDB | Electric Height, Gas Assist Backrest & Foot Sections, Mobile - Vinyl Dark Blue | 700 x 1930 x 460 - 950mm | |
| 5EC/NV0465-CLS-1WH/VDG | Electric Height, Gas Assist Backrest & Foot Sections, Mobile - Vinyl Dark Grey | 700 x 1930 x 460 - 950mm | |
| 5EC/NV0465-CLS-1WH/VBL | Electric Height, Gas Assist Backrest & Foot Sections, Mobile - Vinyl Black | 700 x 1930 x 460 - 950mm |
