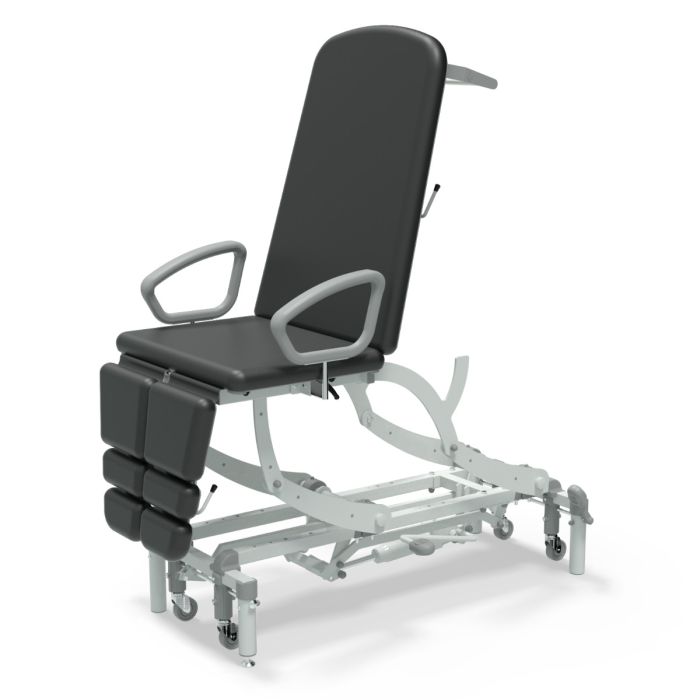

Podiatry, Chiropody & Lower Limb Procedures, Side Support Loops

FEATURES
  • BS 2838-2: 1991 Examination & general treatment couches, build, performance & safety specifications
  • EN 60601-1:2006+A12:2014 Medical electrical equipment. General requirements for basic safety & essential performance
  • Electric or hydraulic height adjustment from 460 - 950mm
  • Gas assist backrest, adjustable from 0 to +90°
  • Gas assisted sections feature an anti-trap design
  • Retractable castors fitted to both ends to assist with movement & positioning
  • One adjustable foot fitted to allow levelling on uneven floors
  • Clearance beneath frame allows access for mobile hoists
  • Electric models (230V ~, 50/60Hz) fitted with a UK 3 pin plug & supplied with a handset
  • Hydraulic models use a foot pump pedal positioned on both sides of the couch
  • Paper roll holder
  • Seamless upholstery using flame retardant anti-microbial vinyl
  • Side support loops fitted either side(removable)
  • Seat section removable for cleaning
  • Frames prepared to accept optional accessories
  • Maximum capacity 265kg

OVERALL DIMENSIONS (w x d x h)
  • 700 x 1930 x 460 - 950mm

STANDARD COLOURS
  • Paint - White
  • Vinyl - Blue

View the full range:

Examination / Treatment Couches & Chairs Podiatry, Chiropody & Lower Limb Procedures
Download Product PDF
Need Advice? Contact Us
Code Description Overall Dimensions (W x D x H) Enquiry
5EC/NV0555-CLS/VCA Hydraulic Height, Gas Assist Backrest & Foot Sections - Vinyl Blue 700 x 1930 x 460 - 950mm minus plus
5EC/NV0555-CLS/VSB Hydraulic Height, Gas Assist Backrest & Foot Sections - Vinyl Sky Blue 700 x 1930 x 460 - 950mm minus plus
5EC/NV0555-CLS/VDB Hydraulic Height, Gas Assist Backrest & Foot Sections - Vinyl Dark Blue 700 x 1930 x 460 - 950mm minus plus
5EC/NV0555-CLS/VDG Hydraulic Height, Gas Assist Backrest & Foot Sections 700 x 1930 x 460 - 950mm minus plus
5EC/NV0555-CLS/VBL Hydraulic Height, Gas Assist Backrest & Foot Sections - Vinyl Black 700 x 1930 x 460 - 950mm minus plus
5EC/NV0555-CLS-1WH/VCA Electric Height, Gas Assist Backrest & Foot Sections - Vinyl Blue 700 x 1930 x 460 - 950mm minus plus
5EC/NV0555-CLS-1WH/VSB Electric Height, Gas Assist Backrest & Foot Sections - Vinyl Sky Blue 700 x 1930 x 460 - 950mm minus plus
5EC/NV0555-CLS-1WH/VDB Electric Height, Gas Assist Backrest & Foot Sections - Vinyl Dark Blue 700 x 1930 x 460 - 950mm minus plus
5EC/NV0555-CLS-1WH/VDG Electric Height, Gas Assist Backrest & Foot Sections - Vinyl Dark Grey 700 x 1930 x 460 - 950mm minus plus
5EC/NV0555-CLS-1WH/VBL Electric Height, Gas Assist Backrest & Foot Sections - Vinyl Black 700 x 1930 x 460 - 950mm minus plus
