Room Dividers
CHOOSE FROM PRE-CONFIGURED WORKSTATIONS OR CONFIGURE YOUR OWN IN FOUR EASY STEPS:
- Select Your Frame (RD1, RD2R, RD2L or RD3)
- Select Lower Unit A (D3, D5, DD or CP)
- Select Lower Unit B (D3, D5, DD or CP)
- Select Lower Unit C (D3, D5, DD or CP)
FEATURES
- Fixed height mobile room divider/workstation
- Ideal for use in critical care areas - A&E, ICU, ICT, HDU
- Modular design allows the unit to be configured to suit your specific requirements
- Frame, worktop & upstand/panel available as:
- Full width upstand
- Full width upstand & right hand mounted panel
- Full width upstand & left hand mounted panel
- Full width panel
- Four configurations of lower units:
- Three drawer unit, upper drawer fitted with an electronic push button lock (2 x 170, 1 x 285mm drawers)
- Five drawer unit, upper drawer fitted with an electronic push button lock (5 x 125mm drawers)
- Cupboard with double doors & removable shelf
- Cover panel (creates a space within the unit)
- Easy clean solid grade laminate work surface & up-stand/panel
- Upper panel fitted with:
- Triple glove box holder
- Alcohol gel holder (compatible with 500ml bottles, 70 x 70 x 225mm)
- Apron roll dispenser
- 100mm ring buffers to protect the fabric of the building
- 100mm swivel castors, 2 off braking
OVERALL DIMENSIONS (w x d x h)
- RD1 - 1768 x 698 x 1000
- RD2R/RD2L - 1768 x 698 x 1588mm
- RD3 - 1768 x 698 x 1350mm
STANDARD COLOURS
- Paint - White
- Worksurface / Up-Stand / Panel - White
View the full range:
Need Advice?
Contact Us
| Code | Description | Overall Dimensions (W x D x H) | Enquiry |
|---|---|---|---|

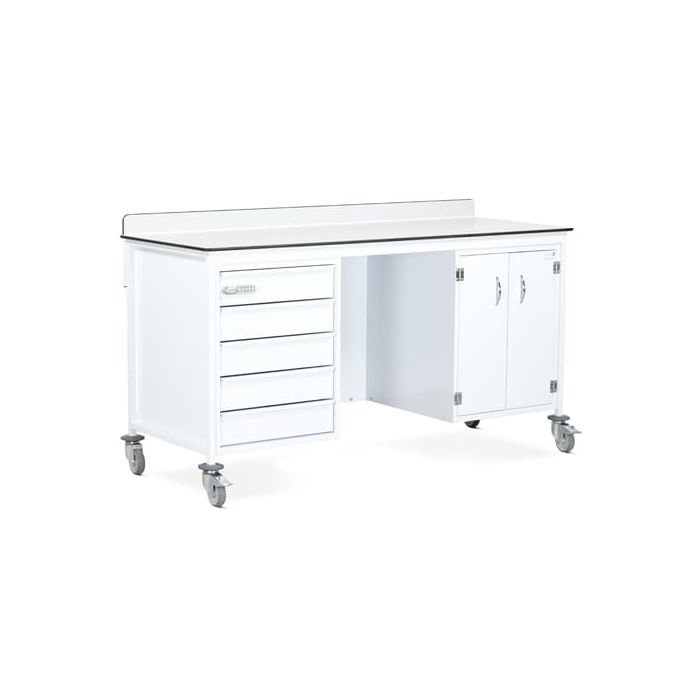

| RD1/D5/CP/DD | Room Divider worktop w/ upstand, 5 drawer unit fitted with code lock, cover panel, 1 double door | 1768 x 698 x 1000mm | |
| RD1/D3/CP/D5 | Room Divider worktop w/ upstand, 3 drawer unit fitted w/ code lock, cover panel, 5 drawer unit fitted w/ code lock | 1768 x 698 x 1000mm | |
| RD2R/D3/DD/D5 | Room Divider worktop w/ upstand, right hand mounted panel, 3 drawer unit fitted w/ code lock, double door unit, 5 drawer unit fitted w/ code lock | 1768 x 698 x 1588mm | |
| RD2R/D5/CP/DD | Room Divider worktop w/ upstand, right hand mounted panel, 5 drawer unit fitted w/ code lock, cover panel, 1 double door unit | 1768 x 698 x 1000mm | |
| RD2L/D5/CP/DD | Room Divider worktop w/ upstand, left hand mounted panel, 5 drawer unit fitted w/ code lock, cover panel, 1 double door unit | 1768 x 698 x 1588mm | |
| RD2L/D3/DD/D5/CC | Room Divider worktop w/ upstand, left hand mounted panel, 3 drawer unit fitted w/ code lock, double door unit, 5 drawer unit fitted w/ code lock | 1768 x 698 x 1588mm | |
| RD3/D5/CP/DD | Room Divider worktop w/ upstand, full length mounted panel, 5 drawer unit fitted with code lock, cover panel, 1 double door unit | 1768 x 698 x 1350mm | |
| RD3/D3/DD/D5/CC | Room Divider worktop w/ upstand, full length mounted panel, 3 drawer unit fitted with code lock, double door unit, 5 drawer unit fitted w/ code lock | 1768 x 698 x 1350mm | |
| RD1 | Frame - Full width upstand | 1768 x 698 x 1000mm | |
| RD2R | Frame - Full width upstand & right hand mounted panel | 1768 x 698 x 1588mm | |
| RD2L | Frame - Full width upstand & left hand mounted panel | 1768 x 698 x 1588mm | |
| RD3 | Frame - Full width panel | 1768 x 698 x 1350mm | |
| D3 | Lower Unit - Three drawer unit, upper drawer fitted with an electronic push button lock (2 x 175, 1 x 285mm) | 1768 x 698 x 1588mm | |
| D5 | Lower Unit - Five drawer unit, upper drawer fitted with an electronic push button lock (5 x 125mm) | ||
| DD | Lower Unit - Cupboard with double doors & removable shelf | ||
| CP | Lower Unit - Cover panel (creates a space within the unit) |
