Controlled Drug Cabinets

FEATURES
  • Exceeds the statutory requirement for the storage of controlled drugs “The Misuse of Drugs (Safe Custody) Regulations 1973” (with the exception of CD045 & CD145)
  • BS 3621 anti-pick & drill, key retaining six pin cylinder lock (supplied with 2 keys & identification card)
  • Key profile unique to Hospital Metalcraft Ltd, offering 250,000 differs per profile
  • Compatible with CLIQ®, integrating electronics into high security mechanical disc cylinders & keys, combining electronic security & remote management in real time
  • Can be supplied with a micro-switch to allow connection to remote lighting / nurse call system by others (CD905), or supplied with a 12v DC LED lighting / warning system with volt-free contact to allow connection to light / nurse call systems. Requires 100v - 240v ~, 50Hz -60Hz, 0.3A Mains supply. Supplied fitted with a UK 3 pin plug. CE marked & conforms to the low voltage directives 73/23/EEC & 89/336/EC
  • Lighting transformer casing adds 105mm to the overall height
  • 1.5mm mild steel, seamless welded construction
  • Mounting holes provided in back (fixings not included)
  • Adjustable & removable shelves
  • Security of models CD005, CD010 & CD015 can be enhanced by concealing inside one of our ‘Drug & Medicine Cabinets’
  • Modular design allows for easy interchange with HTM 63 storage systems
STANDARD COLOURS
  • Paint - White
Code Description Express Delivery? Overall Dimensions (W x D x H) Weight Enquiry
CD005 Controlled Drug Cabinets, R/H Door, 1 Shelf - Compatible with CD910 Lighting / Warning System (Optional) 210 x 270 x 300mm 8kgs

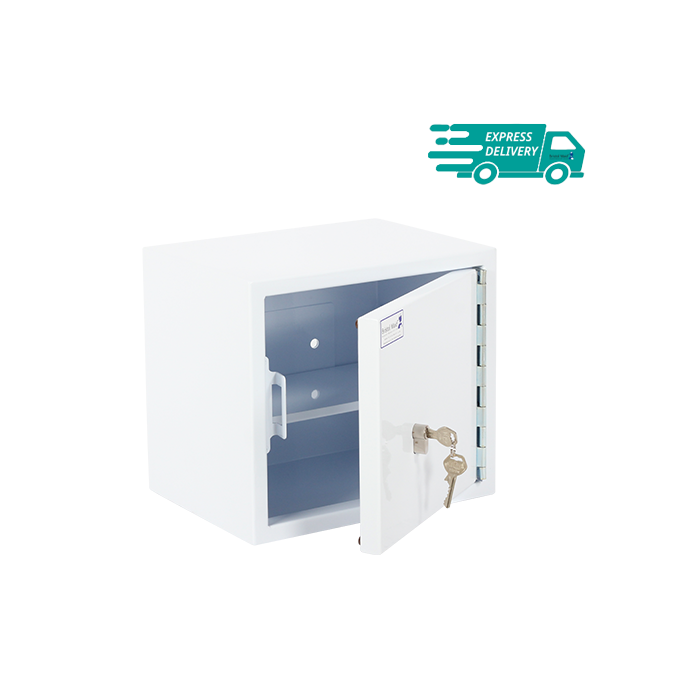

CD010 Controlled Drug Cabinets, R/H Door, 1 Shelf - Compatible with CD910 Lighting / Warning System (Optional) 335 x 270 x 300mm 9kgs
CD015 Controlled Drug Cabinets, R/H Door, 2 Shelves - Compatible with CD910 Lighting / Warning System (Optional) 335 x 270 x 550mm 17kgs
CD020 Controlled Drug Cabinets, R/H Door, 2 Shelves - Compatible with CD910 Lighting / Warning System (Optional) 500 x 300 x 550mm 20kgs
CD025 Controlled Drug Cabinets, R/H Door, 3 Shelves - Compatible with CD910 Lighting / Warning System (Optional) 500 x 300 x 850mm 37kgs
CD030 Controlled Drug Cabinets, R/H Door, 3 Shelves - Compatible with CD911 Lighting / Warning System (Optional) 500 x 450 x 850mm 42kgs
CD035 Controlled Drug Cabinets, R/H Door, 4 Shelves - Compatible with CD911 Lighting / Warning System (Optional) 500 x 450 x 1250mm 59kgs
CD045 Controlled Drug Cabinets, R/H Door, 6 Shelves - Compatible with CD913 Lighting / Warning System (Optional) 500 x 465 x 1900mm 91kgs
CD110 Controlled Drug Cabinets, L/H Door, 1 Shelf - Compatible with CD910 Lighting / Warning System (Optional) 335 x 270 x 300mm 9kgs
CD115 Controlled Drug Cabinets, L/H Door, 2 Shelves - Compatible with CD910 Lighting / Warning System (Optional) 335 x 270 x 550mm 17kgs
CD120 Controlled Drug Cabinets, L/H Door, 2 Shelves - Compatible with CD910 Lighting / Warning System (Optional) 500 x 300 x 550mm 20kgs
CD125 Controlled Drug Cabinets, L/H Door, 3 Shelves - Compatible with CD910 Lighting / Warning System (Optional) 500 x 300 x 850mm 37kgs
CD130 Controlled Drug Cabinets, L/H Door, 3 Shelves - Compatible with CD911 Lighting / Warning System (Optional) 500 x 450 x 850mm 42kgs
CD135 Controlled Drug Cabinets, L/H Door, 4 Shelves - Compatible with CD911 Lighting / Warning System (Optional) 500 x 450 x 1250mm 59kgs
CD145 Controlled Drug Cabinets, L/H Door, 6 Shelves - Compatible with CD913 Lighting / Warning System (Optional) 500 x 465 x 1900mm 91kgs
Specification Sheet Specification Sheet
