Examination & Treatment Couch, Three Section, Bariatric

Code Description Overall Dimensions (W x D x H) Weight Enquiry

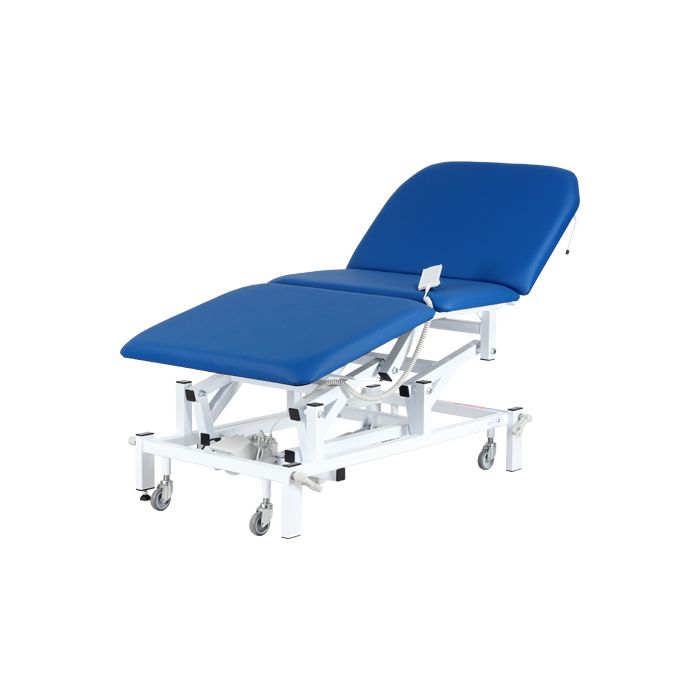

EC2305/VBB Electric, Hand Switch, Bristol Blue 850 x 1790 x 520-950mm 81.8kgs
EC2305/VAQ Electric, Hand Switch, Aquamarine 850 x 1790 x 520-950mm 81.8kgs
EC2305/VFR Electric, Hand Switch, Flame Red 850 x 1790 x 520-950mm 81.8kgs
EC2305/VGH Electric, Hand Switch, Graphite 850 x 1790 x 520-950mm 81.8kgs
EC2305/VSD Electric, Hand Switch, Sand Dune 850 x 1790 x 520-950mm 81.8kgs
EC2305/VOB Electric, Hand Switch, Onyx Black 850 x 1790 x 520-950mm 81.8kgs
EC2305/VLI Electric, Hand Switch, Lime 850 x 1790 x 520-950mm 81.8kgs
EC2305/VCH Electric, Hand Switch, Chocolate 850 x 1790 x 520-950mm 81.8kgs
EC2305/VCB Electric, Hand Switch, Coastal Blue 850 x 1790 x 520-950mm 81.8kgs
EC2305/VPE Electric, Hand Switch, Peach 850 x 1790 x 520-950mm 81.8kgs
EC2310/VBB Electric, Foot Switch, Bristol Blue 850 x 1790 x 520-950mm 81.8kgs
EC2310/VAQ Electric, Foot Switch, Aquamarine 850 x 1790 x 520-950mm 81.8kgs
EC2310/VFR Electric, Foot Switch, Flame Red 850 x 1790 x 520-950mm 81.8kgs
EC2310/VGH Electric, Foot Switch, Graphite 850 x 1790 x 520-950mm 81.8kgs
EC2310/VSD Electric, Foot Switch, Sand Dune 850 x 1790 x 520-950mm 81.8kgs
EC2310/VOB Electric, Foot Switch, Onyx Black 850 x 1790 x 520-950mm 81.8kgs
EC2310/VLI Electric, Foot Switch, Lime 850 x 1790 x 520-950mm 81.8kgs
EC2310/VCH Electric, Foot Switch, Chocolate 850 x 1790 x 520-950mm 81.8kgs
EC2310/VCB Electric, Foot Switch, Coastal Blue 850 x 1790 x 520-950mm 81.8kgs
EC2310/VPE Electric, Foot Switch, Peach 850 x 1790 x 520-950mm 81.8kgs
EC2315/VBB Electric with Electric Backrest, Hand Switch, Bristol Blue 850 x 1790 x 520-950mm 84.1kgs
EC2315/VAQ Electric with Electric Backrest, Hand Switch, Aquamarine 850 x 1790 x 520-950mm 84.1kgs
EC2315/VFR Electric with Electric Backrest, Hand Switch, Flame Red 850 x 1790 x 520-950mm 84.1kgs
EC2315/VGH Electric with Electric Backrest, Hand Switch, Graphite 850 x 1790 x 520-950mm 84.1kgs
EC2315/VSD Electric with Electric Backrest, Hand Switch, Sand Dune 850 x 1790 x 520-950mm 84.1kgs
EC2315/VOB Electric with Electric Backrest, Hand Switch, Onyx Black 850 x 1790 x 520-950mm 84.1kgs
EC2315/VLI Electric with Electric Backrest, Hand Switch, Lime 850 x 1790 x 520-950mm 84.1kgs
EC2315/VCH Electric with Electric Backrest, Hand Switch, Chocolate 850 x 1790 x 520-950mm 84.1kgs
EC2315/VCB Electric with Electric Backrest, Hand Switch, Coastal Blue 850 x 1790 x 520-950mm 84.1kgs
EC2315/VPE Electric with Electric Backrest, Hand Switch, Peach 850 x 1790 x 520-950mm 84.1kgs
EC2320/VBB Electric with Electric Backrest, Foot Switch, Bristol Blue 850 x 1790 x 520-950mm 84.1kgs
EC2320/VAQ Electric with Electric Backrest, Foot Switch, Aquamarine 850 x 1790 x 520-950mm 84.1kgs
EC2320/VFR Electric with Electric Backrest, Foot Switch, Flame Red 850 x 1790 x 520-950mm 84.1kgs
EC2320/VGH Electric with Electric Backrest, Foot Switch, Graphite 850 x 1790 x 520-950mm 84.1kgs
EC2320/VSD Electric with Electric Backrest, Foot Switch, Sand Dune 850 x 1790 x 520-950mm 84.1kgs
EC2320/VOB Electric with Electric Backrest, Foot Switch, Onyx Black 850 x 1790 x 520-950mm 84.1kgs
EC2320/VLI Electric with Electric Backrest, Foot Switch, Lime 850 x 1790 x 520-950mm 84.1kgs
EC2320/VCH Electric with Electric Backrest, Foot Switch, Chocolate 850 x 1790 x 520-950mm 84.1kgs
EC2320/VCB Electric with Electric Backrest, Foot Switch, Coastal Blue 850 x 1790 x 520-950mm 84.1kgs
EC2320/VPE Electric with Electric Backrest, Foot Switch, Peach 850 x 1790 x 520-950mm 84.1kgs
Specification Sheet Specification Sheet
FEATURES
  • BS 2838-2: 1991 Examination & general treatment couches, build, performance & safety specifications
  • EN 60601-1:2006+A12:2014 Medical electrical equipment. General requirements for basic safety & essential performance
  • Electric height adjustment
  • Height adjustment from 520 - 950mm
  • Adjustable angle backrest
    • Manual -25 to +90 degrees
    • Electric -22 to +90 degrees
  • Adjustable angle footrest from -25 to +75 degrees
  • Anti-trap gas struts fitted with release levers used on the back & footrest sections (optional electric backrest)
  • Retractable castors fitted to both ends to assist with movement & positioning
  • One adjustable foot fitted to allow levelling on uneven floors
  • Clearance beneath frame allows access for mobile hoists
  • 230V ~, 50/60H actuator fitted with a UK 3 pin plug & available with a hand or foot switch
  • Seamless upholstery using flame retardant antimicrobial vinyl
  • Frames prepared to accept optional accessories
  • Maxiumum capacity 325kg
OVERALL DIMENSIONS (w x d x h)
  • 850 x 1790 x 520 - 950mm
STANDARD COLOURS
  • Paint - White
  • Vinyl - Bristol Blue

Accessories
