  • Examination & Treatment Couch, Three Section, Mobile, Bariatric


Examination & Treatment Couch, Three Section, Mobile, Bariatric

Code Description Express Delivery? Overall Dimensions (W x D x H) Weight Enquiry
EC2325/VBB Electric, Hand Switch, Bristol Blue 850 x 1790 x 520-950mm 88kgs
EC2325/VFR Electric, Hand Switch, Flame Red 850 x 1790 x 520-950mm 88kgs
EC2325/VGH Electric, Hand Switch, Graphite 850 x 1790 x 520-950mm 88kgs
EC2325/VSD Electric, Hand Switch, Sand Dune 850 x 1790 x 520-950mm 88kgs
EC2325/VOB Electric, Hand Switch, Onyx Black 850 x 1790 x 520-950mm 88kgs
EC2325/VLI Electric, Hand Switch, Lime 850 x 1790 x 520-950mm 88kgs
EC2325/VCH Electric, Hand Switch, Chocolate 850 x 1790 x 520-950mm 88kgs
EC2325/VCB Electric, Hand Switch, Coastal Blue 850 x 1790 x 520-950mm 88kgs
EC2325/VPE Electric, Hand Switch, Peach 850 x 1790 x 520-950mm 88kgs
EC2330/VBB Electric, Foot Switch, Bristol Blue 850 x 1790 x 520-950mm 88kgs
EC2330/VAQ Electric, Foot Switch, Aquamarine 850 x 1790 x 520-950mm 88kgs
EC2330/VFR Electric, Foot Switch, Flame Red 850 x 1790 x 520-950mm 88kgs
EC2330/VGH Electric, Foot Switch, Graphite 850 x 1790 x 520-950mm 88kgs
EC2330/VSD Electric, Foot Switch, Sand Dune 850 x 1790 x 520-950mm 88kgs
EC2330/VOB Electric, Foot Switch, Onyx Black 850 x 1790 x 520-950mm 88kgs
EC2330/VLI Electric, Foot Switch, Lime 850 x 1790 x 520-950mm 88kgs
EC2330/VCH Electric, Foot Switch, Chocolate 850 x 1790 x 520-950mm 88kgs
EC2330/VCB Electric, Foot Switch, Coastal Blue 850 x 1790 x 520-950mm 88kgs
EC2330/VPE Electric, Foot Switch, Peach 850 x 1790 x 520-950mm 88kgs
EC2335/VBB Electric with Electric Backrest, Hand Switch, Bristol Blue 850 x 1790 x 520-950mm 90.3kgs
EC2335/VAQ Electric with Electric Backrest, Hand Switch, Aquamarine 850 x 1790 x 520-950mm 90.3kgs
EC2335/VFR Electric with Electric Backrest, Hand Switch, Flame Red 850 x 1790 x 520-950mm 90.3kgs
EC2335/VGH Electric with Electric Backrest, Hand Switch, Graphite 850 x 1790 x 520-950mm 90.3kgs
EC2335/VSD Electric with Electric Backrest, Hand Switch, Sand Dune 850 x 1790 x 520-950mm 90.3kgs
EC2335/VOB Electric with Electric Backrest, Hand Switch, Onyx Black 850 x 1790 x 520-950mm 90.3kgs
EC2335/VLI Electric with Electric Backrest, Hand Switch, Lime 850 x 1790 x 520-950mm 90.3kgs
EC2335/VCH Electric with Electric Backrest, Hand Switch, Chocolate 850 x 1790 x 520-950mm 90.3kgs
EC2335/VCB Electric with Electric Backrest, Hand Switch, Coastal Blue 850 x 1790 x 520-950mm 90.3kgs
EC2335/VPE Electric with Electric Backrest, Hand Switch, Peach 850 x 1790 x 520-950mm 90.3kgs

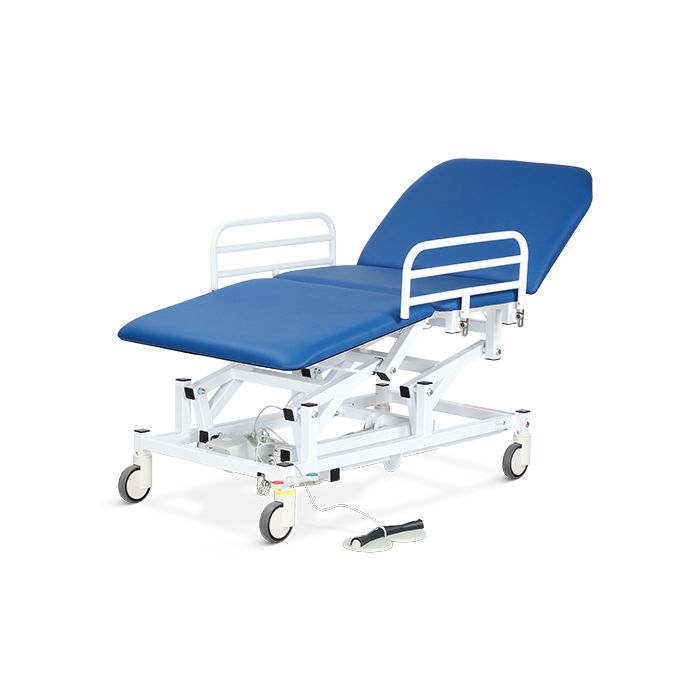

EC2340/VBB Electric with Electric Backrest, Foot Switch, Bristol Blue 850 x 1790 x 520-950mm 90.3kgs
EC2340/VAQ Electric with Electric Backrest, Foot Switch, Aquamarine 850 x 1790 x 520-950mm 90.3kgs
EC2340/VFR Electric with Electric Backrest, Foot Switch, Flame Red 850 x 1790 x 520-950mm 90.3kgs
EC2340/VGH Electric with Electric Backrest, Foot Switch, Graphite 850 x 1790 x 520-950mm 90.3kgs
EC2340/VSD Electric with Electric Backrest, Foot Switch, Sand Dune 850 x 1790 x 520-950mm 90.3kgs
EC2340/VOB Electric with Electric Backrest, Foot Switch, Onyx Black 850 x 1790 x 520-950mm 90.3kgs
EC2340/VLI Electric with Electric Backrest, Foot Switch, Lime 850 x 1790 x 520-950mm 90.3kgs
EC2340/VCH Electric with Electric Backrest, Foot Switch, Chocolate 850 x 1790 x 520-950mm 90.3kgs
EC2340/VCB Electric with Electric Backrest, Foot Switch, Coastal Blue 850 x 1790 x 520-950mm 90.3kgs
EC2340/VPE Electric with Electric Backrest, Foot Switch, Peach 850 x 1790 x 520-950mm 90.3kgs
Specification Sheet Specification Sheet
FEATURES
  • BS 2838-2: 1991 Examination & general treatment couches, build, performance & safety specifications
  • EN 60601-1:2006+A12:2014 Medical electrical equipment. General requirements for basic safety & essential performance
  • Electric height adjustment
  • Height adjustment from 520 - 950mm
  • Adjustable angle backrest
    • Manual -25 to +90 degrees
    • Electric -22 to +90 degrees
  • Adjustable angle footrest from 25 to +75 degrees
  • Anti-trap gas strut fitted with a release lever used on the back & footrest sections (optional electric backrest)
  • 125mm swivel castors featuring a central locking & steering facility
  • Clearance beneath frame allows access for mobile hoists
  • 230V ~, 50/60H actuator fitted with a UK 3 pin plug & available with either a hand or foot switch
  • Seamless upholstery using flame retardant antimicrobial vinyl
  • Swing down side support rails fitted to either side
  • Frames prepared to accept optional accessories
  • Maximum capacity 325kg
OVERALL DIMENSIONS (w x d x h)
  • 850 x 1790 x 520 - 950mm
STANDARD COLOURS
  • Paint - White
  • Vinyl - Bristol Blue
