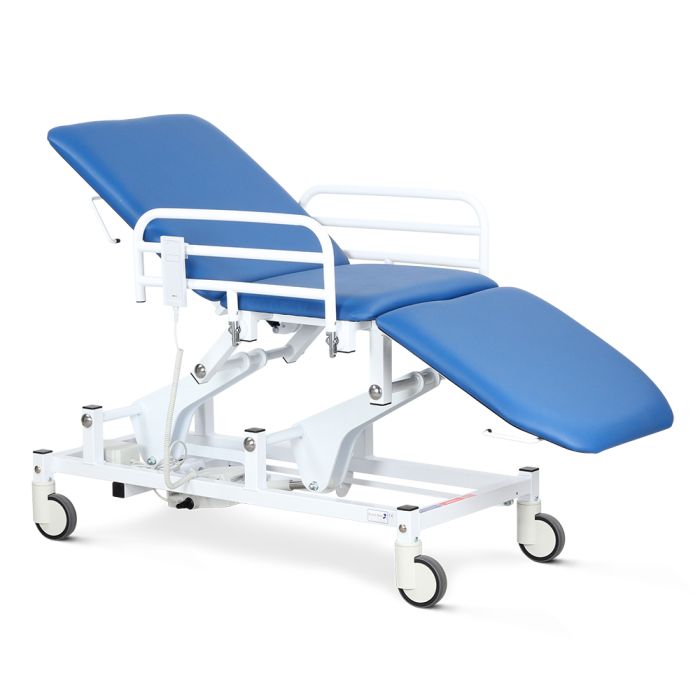

Examination & Treatment Couch, Three Section, Mobile

Code Description Express Delivery? Overall Dimensions (W x D x H) Weight Enquiry
EC1330/VAQ Hydraulic, Aquamarine 630 x 1790 x 490-950mm 76.4kgs
EC1330/VBB Hydraulic, Bristol Blue 630 x 1790 x 490-950mm 76.4kgs
EC1330/VCB Hydraulic, Coastal Blue 630 x 1790 x 490-950mm 76.4kgs
EC1330/VCH Hydraulic, Chocolate 630 x 1790 x 490-950mm 76.4kgs
EC1330/VFR Hydraulic, Flame Red 630 x 1790 x 490-950mm 76.4kgs
EC1330/VGH Hydraulic, Graphite 630 x 1790 x 490-950mm 76.4kgs
EC1330/VLI Hydraulic, Lime 630 x 1790 x 490-950mm 76.4kgs
EC1330/VOB Hydraulic, Onyx Black 630 x 1790 x 490-950mm 76.4kgs
EC1330/VPE Hydraulic, Peach 630 x 1790 x 490-950mm 76.4kgs
EC1330/VSD Hydraulic, Sand Dune 630 x 1790 x 490-950mm 76.4kgs
EC1335/VAQ Electric, Hand Switch, Aquamarine 630 x 1790 x 490-950mm 76.4kgs
EC1335/VBB Electric, Hand Switch, Bristol Blue 630 x 1790 x 490-950mm 76.4kgs
EC1335/VCB Electric, Hand Switch, Coastal Blue 630 x 1790 x 490-950mm 76.4kgs
EC1335/VCH Electric, Hand Switch, Chocolate 630 x 1790 x 490-950mm 76.4kgs
EC1335/VFR Electric, Hand Switch, Flame Red 630 x 1790 x 490-950mm 76.4kgs
EC1335/VGH Electric, Hand Switch, Graphite 630 x 1790 x 490-950mm 76.4kgs
EC1335/VLI Electric, Hand Switch, Lime 630 x 1790 x 490-950mm 76.4kgs
EC1335/VOB Electric, Hand Switch, Onyx Black 630 x 1790 x 490-950mm 76.4kgs
EC1335/VPE Electric, Hand Switch, Peach 630 x 1790 x 490-950mm 76.4kgs
EC1335/VSD Electric, Hand Switch, Sand Dune 630 x 1790 x 490-950mm 76.4kgs
EC1340/VAQ Electric, Foot Switch, Aquamarine 630 x 1790 x 490-950mm 76.4kgs
EC1340/VBB Electric, Foot Switch, Bristol Blue 630 x 1790 x 490-950mm 76.4kgs
EC1340/VCB Electric, Foot Switch, Coastal Blue 630 x 1790 x 490-950mm 76.4kgs
EC1340/VCH Electric, Foot Switch, Chocolate 630 x 1790 x 490-950mm 76.4kgs
EC1340/VFR Electric, Foot Switch, Flame Red 630 x 1790 x 490-950mm 76.4kgs
EC1340/VGH Electric, Foot Switch, Graphite 630 x 1790 x 490-950mm 76.4kgs
EC1340/VLI Electric, Foot Switch, Lime 630 x 1790 x 490-950mm 76.4kgs
EC1340/VOB Electric, Foot Switch, Onyx Black 630 x 1790 x 490-950mm 76.4kgs
EC1340/VPE Electric, Foot Switch, Peach 630 x 1790 x 490-950mm 76.4kgs
EC1340/VSD Electric, Foot Switch, Sand Dune 630 x 1790 x 490-950mm 76.4kgs
EC1345/VAQ Electric with Electric Backrest, Hand Switch, Aquamarine 630 x 1790 x 490-950mm 78.7kgs
EC1345/VBB Electric with Electric Backrest, Hand Switch, Bristol Blue 630 x 1790 x 490-950mm 78.7kgs
EC1345/VCB Electric with Electric Backrest, Hand Switch, Coastal Blue 630 x 1790 x 490-950mm 78.7kgs
EC1345/VCH Electric with Electric Backrest, Hand Switch, Chocolate 630 x 1790 x 490-950mm 78.7kgs
EC1345/VFR Electric with Electric Backrest, Hand Switch, Flame Red 630 x 1790 x 490-950mm 78.7kgs
EC1345/VGH Electric with Electric Backrest, Hand Switch, Graphite 630 x 1790 x 490-950mm 78.7kgs
EC1345/VLI Electric with Electric Backrest, Hand Switch, Lime 630 x 1790 x 490-950mm 78.7kgs
EC1345/VOB Electric with Electric Backrest, Hand Switch, Onyx Black 630 x 1790 x 490-950mm 78.7kgs
EC1345/VPE Electric with Electric Backrest, Hand Switch, Peach 630 x 1790 x 490-950mm 78.7kgs
EC1345/VSD Electric with Electric Backrest, Hand Switch, Sand Dune 630 x 1790 x 490-950mm 78.7kgs
EC1350/VAQ Electric with Electric Backrest, Foot Switch, Aquamarine 630 x 1790 x 490-950mm 78.7kgs
EC1350/VBB Electric with Electric Backrest, Foot Switch, Bristol Blue 630 x 1790 x 490-950mm 78.7kgs
EC1350/VCB Electric with Electric Backrest, Foot Switch, Coastal Blue 630 x 1790 x 490-950mm 78.7kgs
EC1350/VCH Electric with Electric Backrest, Foot Switch, Chocolate 630 x 1790 x 490-950mm 78.7kgs
EC1350/VFR Electric with Electric Backrest, Foot Switch, Flame Red 630 x 1790 x 490-950mm 78.7kgs
EC1350/VGH Electric with Electric Backrest, Foot Switch, Graphite 630 x 1790 x 490-950mm 78.7kgs
EC1350/VLI Electric with Electric Backrest, Foot Switch, Lime 630 x 1790 x 490-950mm 78.7kgs
EC1350/VOB Electric with Electric Backrest, Foot Switch, Onyx Black 630 x 1790 x 490-950mm 78.7kgs
EC1350/VPE Electric with Electric Backrest, Foot Switch, Peach 630 x 1790 x 490-950mm 78.7kgs
EC1350/VSD Electric with Electric Backrest, Foot Switch, Sand Dune 630 x 1790 x 490-950mm 78.7kgs
Specification Sheet Specification Sheet
FEATURES
  • BS 2838-2: 1991 Examination & general treatment couches, build, performance & safety specifications
  • EN 60601-1:2006+A12:2014 Medical electrical equipment. General requirements for basic safety & essential performance
  • Electric or hydraulic height adjustment
  • Height adjustment from 490 - 950mm
  • Adjustable angle backrest
    • Manual -25 to +90 degrees
    • Electric -22 to +90 degrees
  • Adjustable angle footrest from -25 to +75 degrees
  • Anti-trap gas struts fitted with release levers used on back & footrest sections (optional electric backrest)
  • 125mm swivel castors featuring a central locking & steering facility
  • Clearance beneath frame allows access for mobile hoists
  • Electric models (230V ~, 50/60H) fitted with a UK 3 pin plug & available with a hand or foot switch
  • Hydraulic models use a foot pump pedal positioned on both sides of the couch
  • Seamless & contoured upholstery using flame retardant & anti-microbial vinyl
  • Swing down side support rails fitted to either side
  • Frames prepared to accept optional accessories
  • Maximum capacity 225kg
OVERALL DIMENSIONS (w x d x h)
  • 630 x 1790 x 490 - 950mm
STANDARD COLOURS
  • Paint - White
  • Vinyl - Bristol Blue



Accessories
