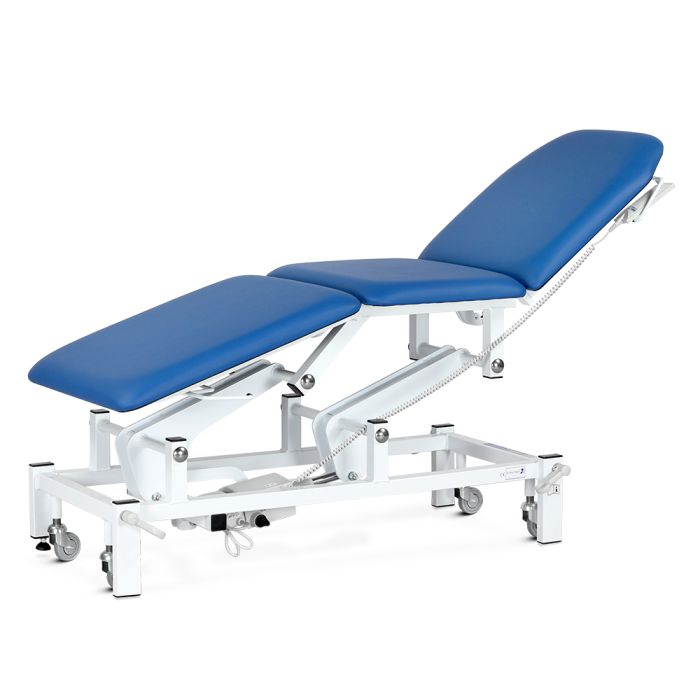

Examination & Treatment Couch, Three Section

Code Description Express Delivery? Overall Dimensions (W x D x H) Weight Enquiry
EC1305/VAQ Hydraulic, Aquamarine 630 x 1790 x 490-950mm 70.2kgs
EC1305/VBB Hydraulic, Bristol Blue 630 x 1790 x 490-950mm 70.2kgs
EC1305/VCB Hydraulic, Coastal Blue 630 x 1790 x 490-950mm 70.2kgs
EC1305/VCH Hydraulic, Chocolate 630 x 1790 x 490-950mm 70.2kgs
EC1305/VFR Hydraulic, Flame Red 630 x 1790 x 490-950mm 70.2kgs
EC1305/VGH Hydraulic, Graphite 630 x 1790 x 490-950mm 70.2kgs
EC1305/VLI Hydraulic, Lime 630 x 1790 x 490-950mm 70.2kgs
EC1305/VOB Hydraulic, Onyx Black 630 x 1790 x 490-950mm 70.2kgs
EC1305/VPE Hydraulic, Peach 630 x 1790 x 490-950mm 70.2kgs
EC1305/VSD Hydraulic, Sand Dune 630 x 1790 x 490-950mm 70.2kgs
EC1310/VAQ Electric, Hand Switch, Aquamarine 630 x 1790 x 490-950mm 70.2kgs
EC1310/VBB Electric, Hand Switch, Bristol Blue 630 x 1790 x 490-950mm 70.2kgs
EC1310/VCB Electric, Hand Switch, Coastal Blue 630 x 1790 x 490-950mm 70.2kgs
EC1310/VCH Electric, Hand Switch, Chocolate 630 x 1790 x 490-950mm 70.2kgs
EC1310/VFR Electric, Hand Switch, Flame Red 630 x 1790 x 490-950mm 70.2kgs
EC1310/VGH Electric, Hand Switch, Graphite 630 x 1790 x 490-950mm 70.2kgs
EC1310/VLI Electric, Hand Switch, Lime 630 x 1790 x 490-950mm 70.2kgs
EC1310/VOB Electric, Hand Switch, Onyx Black 630 x 1790 x 490-950mm 70.2kgs
EC1310/VPE Electric, Hand Switch, Peach 630 x 1790 x 490-950mm 70.2kgs
EC1310/VSD Electric, Hand Switch, Sand Dune 630 x 1790 x 490-950mm 70.2kgs
EC1315/VAQ Electric, Foot Switch, Aquamarine 630 x 1790 x 490-950mm 70.2kgs
EC1315/VBB Electric, Foot Switch, Bristol Blue 630 x 1790 x 490-950mm 70.2kgs
EC1315/VCB Electric, Foot Switch, Coastal Blue 630 x 1790 x 490-950mm 70.2kgs
EC1315/VCH Electric, Foot Switch, Chocolate 630 x 1790 x 490-950mm 70.2kgs
EC1315/VFR Electric, Foot Switch, Flame Red 630 x 1790 x 490-950mm 70.2kgs
EC1315/VGH Electric, Foot Switch, Graphite 630 x 1790 x 490-950mm 70.2kgs
EC1315/VLI Electric, Foot Switch, Lime 630 x 1790 x 490-950mm 70.2kgs
EC1315/VOB Electric, Foot Switch, Onyx Black 630 x 1790 x 490-950mm 70.2kgs
EC1315/VPE Electric, Foot Switch, Peach 630 x 1790 x 490-950mm 70.2kgs
EC1315/VSD Electric, Foot Switch, Sand Dune 630 x 1790 x 490-950mm 70.2kgs
EC1320/VAQ Electric with Electric Backrest, Hand Switch, Aquamarine 630 x 1790 x 490-950mm 72.5kgs
EC1320/VBB Electric with Electric Backrest, Hand Switch, Bristol Blue 630 x 1790 x 490-950mm 72.5kgs
EC1320/VCB Electric with Electric Backrest, Hand Switch, Coastal Blue 630 x 1790 x 490-950mm 72.5kgs
EC1320/VCH Electric with Electric Backrest, Hand Switch, Chocolate 630 x 1790 x 490-950mm 72.5kgs
EC1320/VFR Electric with Electric Backrest, Hand Switch, Flame Red 630 x 1790 x 490-950mm 72.5kgs
EC1320/VGH Electric with Electric Backrest, Hand Switch, Graphite 630 x 1790 x 490-950mm 72.5kgs
EC1320/VLI Electric with Electric Backrest, Hand Switch, Lime 630 x 1790 x 490-950mm 72.5kgs
EC1320/VOB Electric with Electric Backrest, Hand Switch, Onyx Black 630 x 1790 x 490-950mm 72.5kgs
EC1320/VPE Electric with Electric Backrest, Hand Switch, Peach 630 x 1790 x 490-950mm 72.5kgs
EC1320/VSD Electric with Electric Backrest, Hand Switch, Sand Dune 630 x 1790 x 490-950mm 72.5kgs
EC1325/VAQ Electric with Electric Backrest, Foot Switch, Aquamarine 630 x 1790 x 490-950mm 72.5kgs
EC1325/VBB Electric with Electric Backrest, Foot Switch, Bristol Blue 630 x 1790 x 490-950mm 72.5kgs
EC1325/VCB Electric with Electric Backrest, Foot Switch, Coastal Blue 630 x 1790 x 490-950mm 72.5kgs
EC1325/VCH Electric with Electric Backrest, Foot Switch, Chocolate 630 x 1790 x 490-950mm 72.5kgs
EC1325/VFR Electric with Electric Backrest, Foot Switch, Flame Red 630 x 1790 x 490-950mm 72.5kgs
EC1325/VGH Electric with Electric Backrest, Foot Switch, Graphite 630 x 1790 x 490-950mm 72.5kgs
EC1325/VLI Electric with Electric Backrest, Foot Switch, Lime 630 x 1790 x 490-950mm 72.5kgs
EC1325/VOB Electric with Electric Backrest, Foot Switch, Onyx Black 630 x 1790 x 490-950mm 72.5kgs
EC1325/VPE Electric with Electric Backrest, Foot Switch, Peach 630 x 1790 x 490-950mm 72.5kgs
EC1325/VSD Electric with Electric Backrest, Foot Switch, Sand Dune 630 x 1790 x 490-950mm 72.5kgs
Specification Sheet Specification Sheet
FEATURES
  • BS 2838-2: 1991 Examination & general treatment couches, build, performance & safety specifications
  • EN 60601-1:2006+A12:2014 Medical electrical equipment. General requirements for basic safety & essential performance
  • Electric or hydraulic height adjustment
  • Height adjustment from 490 - 950mm
  • Adjustable angle backrest
    • Manual -25 to +90 degrees
    • Electric -22 to +90 degrees
  • Adjustable angle footrest from -25 to +75 degrees
  • Anti-trap gas struts fitted with release levers used on the back & footrest sections (optional electric backrest)
  • Retractable castors fitted to both ends to assist with movement & positioning
  • One adjustable foot fitted to allow levelling on uneven floors
  • Clearance beneath frame allows access for mobile hoists
  • Electric models (230V ~, 50/60H) fitted with a UK 3 pin plug & available with a hand or foot switch
  • Hydraulic models use a foot pump pedal positioned on both sides of the couch
  • Seamless upholstery using flame retardant anti-microbial vinyl
  • Frames prepared to accept optional accessories
  • Maximum capacity 225kg
OVERALL DIMENSIONS (w x d x h)
  • 630 x 1790 x 490 - 950mm
STANDARD COLOURS
  • Paint - White
  • Vinyl - Bristol Blue
