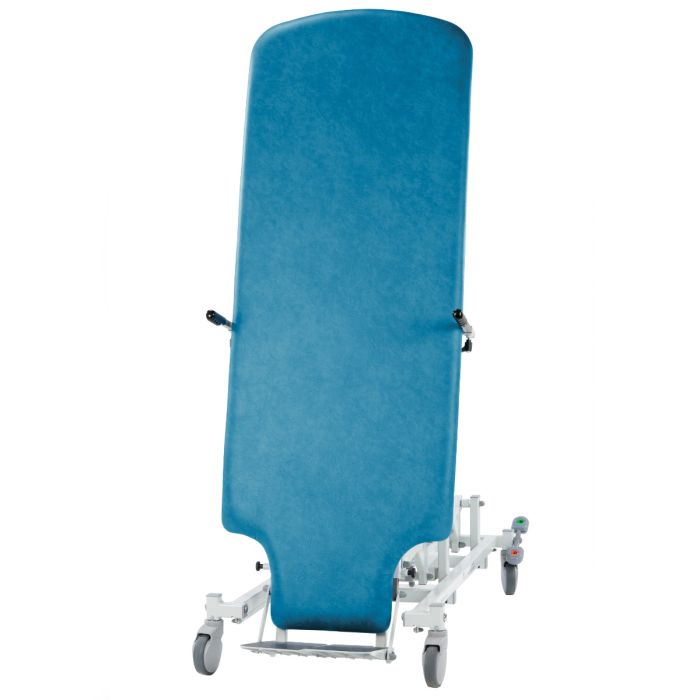

Tilt Tables

FEATURES
  • BS 2838-2: 1991 Examination & general treatment couches, build, performance & safety specifications
  • EN 60601-1:2006+A12:2014 Medical electrical equipment. General requirements for basic safety & essential performance
  • Tilt Tables…
    • Electric height adjustment from 470 - 1010mm
    • Adjustable angle dual footboards +15° to -30° (4 Positions)
    • Tilting angle 0 to +90°
    • Tilt angle inclinometer
  • Tilt Tables Emergency Override…
    • Electric height adjustment from 490 - 1040mm
    • Electric tilt from 0 to 90° (15 Seconds)
    • Emergency down facility to return patient to horizontal
  • 125mm central locking castors, with steering facility
  • Clearance beneath frame allows access for mobile hoists
  • Fitted with a UK 3 pin plug (230V ~, 50/60Hz) & supplied with a handset
  • Seamless upholstery using flame retardant anti-microbial vinyl
  • Patient handgrips, set of harnesses & worktable
  • 1 x Wide Harness supplied with standard tilt table
  • 2 x Standard Harness supplied with divided leg model
  • Frames prepared to accept optional accessories
  • Maximum capacity 225kg

OVERALL DIMENSIONS (w x d x h)
  • Tilt Tables - 700 x 1950 x 470 - 1010mm
  • Tilt Tables, Emergency Override - 700 x 1950 x 490 - 1040mm

STANDARD COLOURS
  • Paint - White
  • Vinyl - Blue
Download Product PDF
Need Advice? Contact Us
Code Description Overall Dimensions (W x D x H) Enquiry
5EC/ST7641-TMO-2WH Electric Height, Central Locking Castors 700 x 1950 x 470 - 1010mm minus plus
5EC/ST7641DL-TMO-2WH Divided Leg, Electric Height, Central Locking Castors 700 x 1950 x 470 - 1010mm minus plus
5EC/ST7645-TMO-DSP Emergency Override, Electric Height, Central Locking Castors 700 x 1950 x 490 - 1040mm minus plus
5EC/ST7645DL-TMO-DSP Emergency Override, Divided Leg, Electric Height, Central Locking Castors 700 x 1950 x 490 - 1040mm minus plus
