Examination & Treatment Couch, Two Section, Mobile, Bariatric

FEATURES
  • BS 2838-2: 1991 Examination & general treatment couches, build, performance & safety specifications
  • EN 60601-1:2006+A12:2014 Medical electrical equipment. General requirements for basic safety & essential performance
  • Electric height adjustment
  • Height adjustment from 520 - 950mm
  • Adjustable angle backrest
    • Manual -25 to +90 degrees
    • Electric -22 to +90 degrees
  • Anti-trap gas strut fitted with a release lever used on the backrest section (optional electric)
  • 125mm swivel castors featuring a central locking & steering facility
  • Clearance beneath frame allows access for mobile hoists
  • 230V ~, 50/60H actuator fitted with a UK 3 pin plug & available with a hand or foot switch
  • Seamless upholstery using flame retardant antimicrobial vinyl
  • Swing down side support rails fitted to either side
  • Frames prepared to accept optional accessories
  • Maximum capacity 325kg
OVERALL DIMENSIONS (w x d x h)
  • 850 x 1790 x 520 - 950mm
STANDARD COLOURS
  • Paint - White
  • Vinyl - Bristol Blue



Code Description Express Delivery? Overall Dimensions (W x D x H) Weight Enquiry
EC2225/VAQ Electric, Hand Switch, Aquamarine 850 x 1790 x 520-950mm 85.2kgs

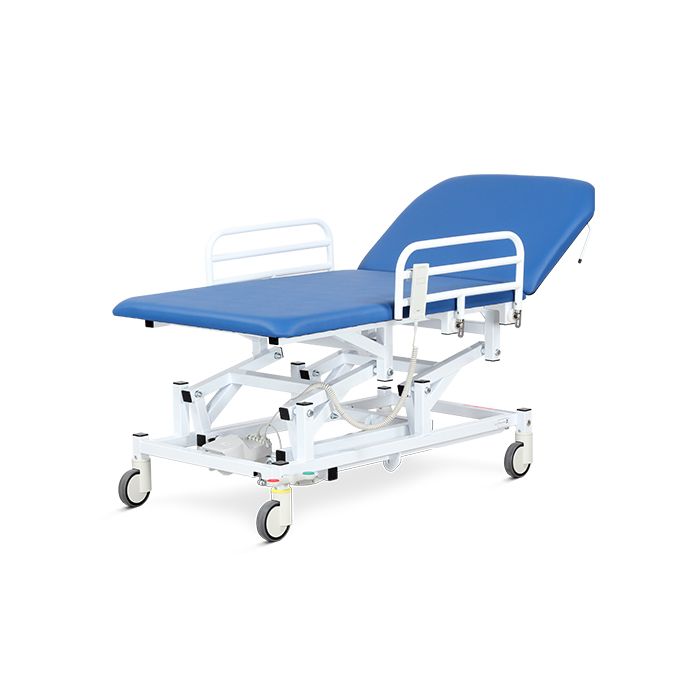

EC2225/VBB Electric, Hand Switch, Bristol Blue 850 x 1790 x 520-950mm 85.2kgs
EC2225/VCB Electric, Hand Switch, Coastal Blue 850 x 1790 x 520-950mm 85.2kgs
EC2225/VCH Electric, Hand Switch, Chocolate 850 x 1790 x 520-950mm 85.2kgs
EC2225/VFR Electric, Hand Switch, Flame Red 850 x 1790 x 520-950mm 85.2kgs
EC2225/VGH Electric, Hand Switch, Graphite 850 x 1790 x 520-950mm 85.2kgs
EC2225/VLI Electric, Hand Switch, Lime 850 x 1790 x 520-950mm 85.2kgs
EC2225/VOB Electric, Hand Switch, Onyx Black 850 x 1790 x 520-950mm 85.2kgs
EC2225/VPE Electric, Hand Switch, Peach 850 x 1790 x 520-950mm 85.2kgs
EC2225/VSD Electric, Hand Switch, Sand Dune 850 x 1790 x 520-950mm 85.2kgs
EC2230/VAQ Electric, Foot Switch, Aquamarine 850 x 1790 x 520-950mm 85.2kgs
EC2230/VBB Electric, Foot Switch, Bristol Blue 850 x 1790 x 520-950mm 85.2kgs
EC2230/VCB Electric, Foot Switch, Coastal Blue 850 x 1790 x 520-950mm 85.2kgs
EC2230/VCH Electric, Foot Switch, Chocolate 850 x 1790 x 520-950mm 85.2kgs
EC2230/VFR Electric, Foot Switch, Flame Red 850 x 1790 x 520-950mm 85.2kgs
EC2230/VGH Electric, Foot Switch, Graphite 850 x 1790 x 520-950mm 85.2kgs
EC2230/VLI Electric, Foot Switch, Lime 850 x 1790 x 520-950mm 85.2kgs
EC2230/VOB Electric, Foot Switch, Onyx Black 850 x 1790 x 520-950mm 85.2kgs
EC2230/VPE Electric, Foot Switch, Peach 850 x 1790 x 520-950mm 85.2kgs
EC2230/VSD Electric, Foot Switch, Sand Dune 850 x 1790 x 520-950mm 85.2kgs
EC2235/VAQ Electric with Electric Backrest, Hand Switch, Aquamarine 850 x 1790 x 520-950mm 87.5kgs
EC2235/VBB Electric with Electric Backrest, Hand Switch, Bristol Blue 850 x 1790 x 520-950mm 87.5kgs
EC2235/VCB Electric with Electric Backrest, Hand Switch, Coastal Blue 850 x 1790 x 520-950mm 87.5kgs
EC2235/VCH Electric with Electric Backrest, Hand Switch, Chocolate 850 x 1790 x 520-950mm 87.5kgs
EC2235/VFR Electric with Electric Backrest, Hand Switch, Flame Red 850 x 1790 x 520-950mm 87.5kgs
EC2235/VGH Electric with Electric Backrest, Hand Switch, Graphite 850 x 1790 x 520-950mm 87.5kgs
EC2235/VLI Electric with Electric Backrest, Hand Switch, Lime 850 x 1790 x 520-950mm 87.5kgs
EC2235/VOB Electric with Electric Backrest, Hand Switch, Onyx Black 850 x 1790 x 520-950mm 87.5kgs
EC2235/VPE Electric with Electric Backrest, Hand Switch, Peach 850 x 1790 x 520-950mm 87.5kgs
EC2235/VSD Electric with Electric Backrest, Hand Switch, Sand Dune 850 x 1790 x 520-950mm 87.5kgs
EC2240/VAQ Electric with Electric Backrest, Foot Switch, Aquamarine 850 x 1790 x 520-950mm 87.5kgs
EC2240/VBB Electric with Electric Backrest, Foot Switch, Bristol Blue 850 x 1790 x 520-950mm 87.5kgs
EC2240/VCB Electric with Electric Backrest, Foot Switch, Coastal Blue 850 x 1790 x 520-950mm 87.5kgs
EC2240/VCH Electric with Electric Backrest, Foot Switch, Chocolate 850 x 1790 x 520-950mm 87.5kgs
EC2240/VFR Electric with Electric Backrest, Foot Switch, Flame Red 850 x 1790 x 520-950mm 87.5kgs
EC2240/VGH Electric with Electric Backrest, Foot Switch, Graphite 850 x 1790 x 520-950mm 87.5kgs
EC2240/VLI Electric with Electric Backrest, Foot Switch, Lime 850 x 1790 x 520-950mm 87.5kgs
EC2240/VOB Electric with Electric Backrest, Foot Switch, Onyx Black 850 x 1790 x 520-950mm 87.5kgs
EC2240/VPE Electric with Electric Backrest, Foot Switch, Peach 850 x 1790 x 520-950mm 87.5kgs
EC2240/VSD Electric with Electric Backrest, Foot Switch, Sand Dune 850 x 1790 x 520-950mm 87.5kgs
Specification Sheet Specification Sheet
