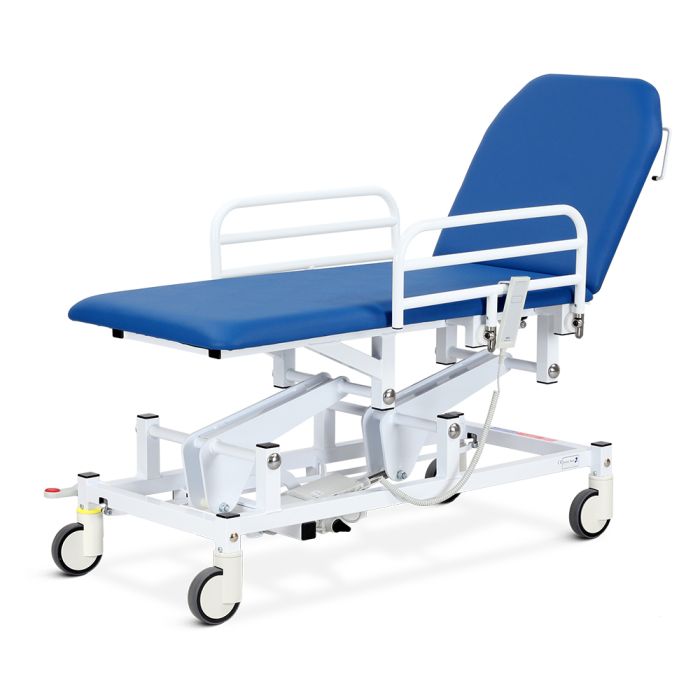

Examination & Treatment Couch, Two Section, Mobile

Code Description Express Delivery? Overall Dimensions (W x D x H) Weight Enquiry
EC1230/VAQ Hydraulic, Aquamarine 630 x 1790 x 490-950mm 75kgs
EC1230/VBB Hydraulic, Bristol Blue 630 x 1790 x 490-950mm 75kgs
EC1230/VCB Hydraulic, Coastal Blue 630 x 1790 x 490-950mm 75kgs
EC1230/VCH Hydraulic, Chocolate 630 x 1790 x 490-950mm 75kgs
EC1230/VFR Hydraulic, Flame Red 630 x 1790 x 490-950mm 75kgs
EC1230/VGH Hydraulic, Graphite 630 x 1790 x 490-950mm 75kgs
EC1230/VLI Hydraulic, Lime 630 x 1790 x 490-950mm 75kgs
EC1230/VOB Hydraulic, Onyx Black 630 x 1790 x 490-950mm 75kgs
EC1230/VPE Hydraulic, Peach 630 x 1790 x 490-950mm 75kgs
EC1230/VSD Hydraulic, Sand Dune 630 x 1790 x 490-950mm 75kgs
EC1235/VAQ Electric, Hand Switch, Aquamarine 630 x 1790 x 490-950mm 75kgs
EC1235/VBB Electric, Hand Switch, Bristol Blue 630 x 1790 x 490-950mm 75kgs
EC1235/VCB Electric, Hand Switch, Coastal Blue 630 x 1790 x 490-950mm 75kgs
EC1235/VCH Electric, Hand Switch, Chocolate 630 x 1790 x 490-950mm 75kgs
EC1235/VFR Electric, Hand Switch, Flame Red 630 x 1790 x 490-950mm 75kgs
EC1235/VGH Electric, Hand Switch, Graphite 630 x 1790 x 490-950mm 75kgs
EC1235/VLI Electric, Hand Switch, Lime 630 x 1790 x 490-950mm 75kgs
EC1235/VOB Electric, Hand Switch, Onyx Black 630 x 1790 x 490-950mm 75kgs
EC1235/VPE Electric, Hand Switch, Peach 630 x 1790 x 490-950mm 75kgs
EC1235/VSD Electric, Hand Switch, Sand Dune 630 x 1790 x 490-950mm 75kgs
EC1240/VAQ Electric, Foot Switch, Aquamarine 630 x 1790 x 490-950mm 75kgs
EC1240/VBB Electric, Foot Switch, Bristol Blue 630 x 1790 x 490-950mm 75kgs
EC1240/VCB Electric, Foot Switch, Coastal Blue 630 x 1790 x 490-950mm 75kgs
EC1240/VCH Electric, Foot Switch, Chocolate 630 x 1790 x 490-950mm 75kgs
EC1240/VFR Electric, Foot Switch, Flame Red 630 x 1790 x 490-950mm 75kgs
EC1240/VGH Electric, Foot Switch, Graphite 630 x 1790 x 490-950mm 75kgs
EC1240/VLI Electric, Foot Switch, Lime 630 x 1790 x 490-950mm 75kgs
EC1240/VOB Electric, Foot Switch, Onyx Black 630 x 1790 x 490-950mm 75kgs
EC1240/VPE Electric, Foot Switch, Peach 630 x 1790 x 490-950mm 75kgs
EC1240/VSD Electric, Foot Switch, Sand Dune 630 x 1790 x 490-950mm 75kgs
EC1245/VAQ Electric with Electric Backrest, Hand Switch, Aquamarine 630 x 1790 x 490-950mm 77.3kgs
EC1245/VBB Electric with Electric Backrest, Hand Switch, Bristol Blue 630 x 1790 x 490-950mm 77.3kgs
EC1245/VCB Electric with Electric Backrest, Hand Switch, Coastal Blue 630 x 1790 x 490-950mm 77.3kgs
EC1245/VCH Electric with Electric Backrest, Hand Switch, Chocolate 630 x 1790 x 490-950mm 77.3kgs
EC1245/VFR Electric with Electric Backrest, Hand Switch, Flame Red 630 x 1790 x 490-950mm 77.3kgs
EC1245/VGH Electric with Electric Backrest, Hand Switch, Graphite 630 x 1790 x 490-950mm 77.3kgs
EC1245/VLI Electric with Electric Backrest, Hand Switch, Lime 630 x 1790 x 490-950mm 77.3kgs
EC1245/VOB Electric with Electric Backrest, Hand Switch, Onyx Black 630 x 1790 x 490-950mm 77.3kgs
EC1245/VPE Electric with Electric Backrest, Hand Switch, Peach 630 x 1790 x 490-950mm 77.3kgs
EC1245/VSD Electric with Electric Backrest, Hand Switch, Sand Dune 630 x 1790 x 490-950mm 77.3kgs
EC1250/VAQ Electric with Electric Backrest, Foot Switch, Aquamarine 630 x 1790 x 490-950mm 77.3kgs
EC1250/VBB Electric with Electric Backrest, Foot Switch, Bristol Blue 630 x 1790 x 490-950mm 77.3kgs
EC1250/VCB Electric with Electric Backrest, Foot Switch, Coastal Blue 630 x 1790 x 490-950mm 77.3kgs
EC1250/VCH Electric with Electric Backrest, Foot Switch, Chocolate 630 x 1790 x 490-950mm 77.3kgs
EC1250/VFR Electric with Electric Backrest, Foot Switch, Flame Red 630 x 1790 x 490-950mm 77.3kgs
EC1250/VGH Electric with Electric Backrest, Foot Switch, Graphite 630 x 1790 x 490-950mm 77.3kgs
EC1250/VLI Electric with Electric Backrest, Foot Switch, Lime 630 x 1790 x 490-950mm 77.3kgs
EC1250/VOB Electric with Electric Backrest, Foot Switch, Onyx Black 630 x 1790 x 490-950mm 77.3kgs
EC1250/VPE Electric with Electric Backrest, Foot Switch, Peach 630 x 1790 x 490-950mm 77.3kgs
EC1250/VSD Electric with Electric Backrest, Foot Switch, Sand Dune 630 x 1790 x 490-950mm 77.3kgs
Specification Sheet Specification Sheet
FEATURES
  • BS 2838-2: 1991 Examination & general treatment couches, build, performance & safety specifications
  • EN 60601-1:2006+A12:2014 Medical electrical equipment. General requirements for basic safety & essential performance
  • Electric or hydraulic height adjustment
  • Height adjustment from 490 - 950mm
  • Adjustable angle backrest
    • Manual -25 to +90 degrees
    • Electric -22 to +90 degrees
  • Anti-trap gas strut fitted with a release lever used on the backrest section (optional electric)
  • 125mm swivel castors featuring a central locking & steering facility
  • Clearance beneath frame allows access for mobile hoists
  • Electric models (230V ~, 50/60H) fitted with a UK 3 pin plug & available with a hand or foot switch
  • Hydraulic models use a foot pump pedal positioned on both sides of the couch
  • Seamless upholstery using flame retardant anti-microbial vinyl
  • Swing down side support rails fitted to either side
  • Frames prepared to accept optional accessories
  • Maximum capacity 225kg
OVERALL DIMENSIONS (w x d x h)
  • 630 x 1790 x 490 - 950mm
STANDARD COLOURS
  • Paint - White
  • Vinyl - Bristol Blue

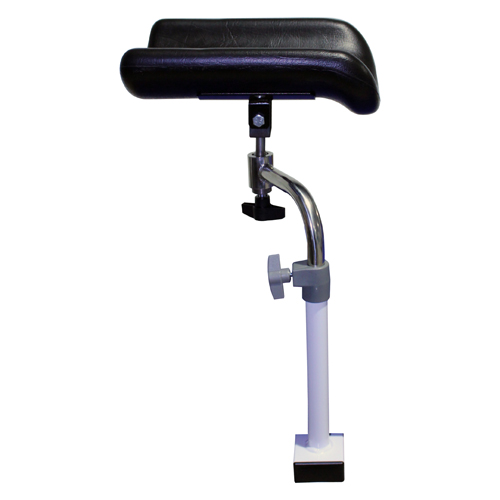

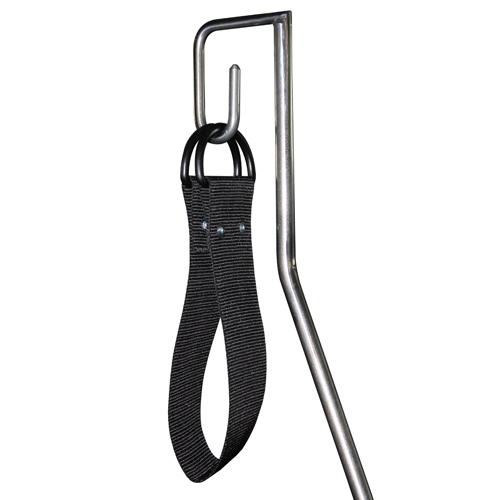

Accessories
