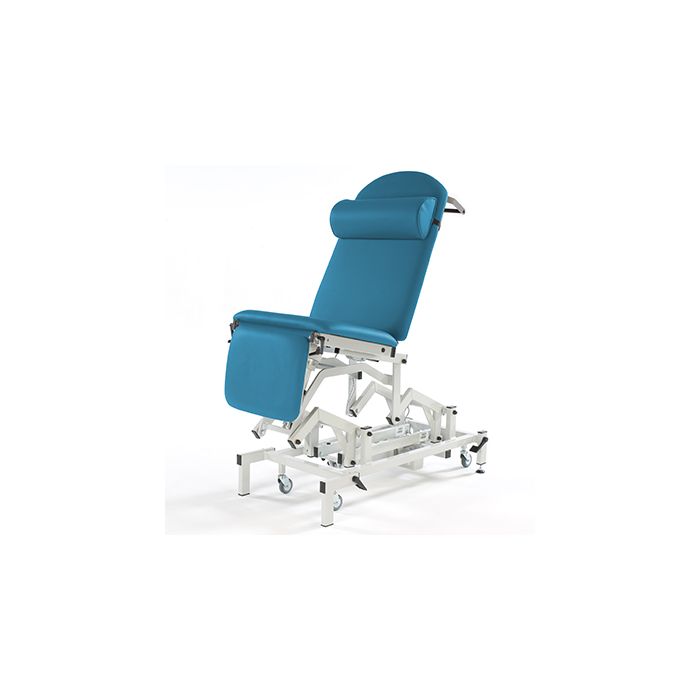

Ultrasound

FEATURES
  • BS 2838-2: 1991 Examination & general treatment couches, build, performance & safety specifications
  • EN 60601-1:2006+A12:2014 Medical electrical equipment. General requirements for basic safety & essential performance
  • Electric height adjustment from 520 - 1060mm
  • Electric backrest, adjustable from 0 to +80°
  • Gas / electric foot section, adjustable from 0 to -85°
  • Gas assisted sections feature an anti-trap design
  • Electric Trendelenburg tilt +/-15°
  • Retractable castors fitted to both ends to assist with movement & positioning
  • One adjustable foot fitted to allow levelling on uneven floors
  • Clearance beneath frame allows access for mobile hoists
  • Fitted with a UK 3 pin plug (230V ~, 50/60Hz) & supplied with a handset with a digital display, providing live feedback of height, section & Trendelenburg tilt angle (°)
  • Paper roll holder & headrest
  • Seamless upholstery using flame retardant anti-microbial vinyl
  • Frames prepared to accept optional accessories
  • Maximum capacity 240kg

OVERALL DIMENSIONS (w x d x h)
  • 650 x 1800 x 520 - 1060mm

STANDARD COLOURS
  • Paint - White
  • Vinyl - Blue

View the full range:

Examination / Treatment Couches & Chairs UltrasoundGynae
Download Product PDF
Need Advice? Contact Us
Code Description Overall Dimensions (W x D x H) Enquiry
5EC/SM9686-TMO-3WH Electric Height, Gas Assist Backrest & Foot Section 700 x 1800 x 520 - 1060mm minus plus
5EC/SM9696-TMO-4WH Electric Height, Tilt, Backrest & Foot Section 700 x 1800 x 520 - 1060mm minus plus
