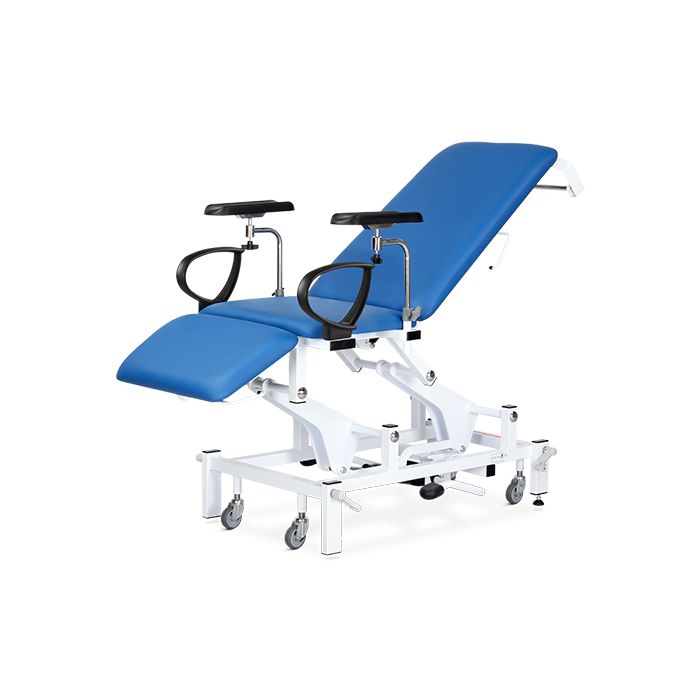

Phlebotomy Chair, Variable Height

Code Description Overall Dimensions (W x D x H) Weight Enquiry
EC5305/VAQ Hydraulic, Aquamarine 770 x 1710 x 490 - 950mm 67kgs
EC5305/VBB Hydraulic, Bristol Blue 770 x 1710 x 490 - 950mm 67kgs
EC5305/VCB Hydraulic, Coastal Blue 770 x 1710 x 490 - 950mm 67kgs
EC5305/VCH Hydraulic, Chocolate 770 x 1710 x 490 - 950mm 67kgs
EC5305/VFR Hydraulic, Flame Red 770 x 1710 x 490 - 950mm 67kgs
EC5305/VGH Hydraulic, Graphite 770 x 1710 x 490 - 950mm 67kgs
EC5305/VLI Hydraulic, Lime 770 x 1710 x 490 - 950mm 67kgs
EC5305/VOB Hydraulic, Onyx Black 770 x 1710 x 490 - 950mm 67kgs
EC5305/VPE Hydraulic, Peach 770 x 1710 x 490 - 950mm 67kgs
EC5305/VSD Hydraulic, Sand Dune 770 x 1710 x 490 - 950mm 67kgs
EC5310/VAQ Electric, Hand Switch, Aquamarine 770 x 1710 x 490 - 950mm 67kgs
EC5310/VBB Electric, Hand Switch, Bristol Blue 770 x 1710 x 490 - 950mm 67kgs
EC5310/VCB Electric, Hand Switch, Coastal Blue 770 x 1710 x 490 - 950mm 67kgs
EC5310/VCH Electric, Hand Switch, Chocolate 770 x 1710 x 490 - 950mm 67kgs
EC5310/VFR Electric, Hand Switch, Flame Red 770 x 1710 x 490 - 950mm 67kgs
EC5310/VGH Electric, Hand Switch, Graphite 770 x 1710 x 490 - 950mm 67kgs
EC5310/VLI Electric, Hand Switch, Lime 770 x 1710 x 490 - 950mm 67kgs
EC5310/VOB Electric, Hand Switch, Onyx Black 770 x 1710 x 490 - 950mm 67kgs
EC5310/VPE Electric, Hand Switch, Peach 770 x 1710 x 490 - 950mm 67kgs
EC5310/VSD Electric, Hand Switch, Sand Dune 770 x 1710 x 490 - 950mm 67kgs
EC5315/VAQ Electric, Foot Switch, Aquamarine 770 x 1710 x 490 - 950mm 67kgs
EC5315/VBB Electric, Foot Switch, Bristol Blue 770 x 1710 x 490 - 950mm 67kgs
EC5315/VCB Electric, Foot Switch, Coastal Blue 770 x 1710 x 490 - 950mm 67kgs
EC5315/VCH Electric, Foot Switch, Chocolate 770 x 1710 x 490 - 950mm 67kgs
EC5315/VFR Electric, Foot Switch, Flame Red 770 x 1710 x 490 - 950mm 67kgs
EC5315/VGH Electric, Foot Switch, Graphite 770 x 1710 x 490 - 950mm 67kgs
EC5315/VLI Electric, Foot Switch, Lime 770 x 1710 x 490 - 950mm 67kgs
EC5315/VOB Electric, Foot Switch, Onyx Black 770 x 1710 x 490 - 950mm 67kgs
EC5315/VPE Electric, Foot Switch, Peach 770 x 1710 x 490 - 950mm 67kgs
EC5315/VSD Electric, Foot Switch, Sand Dune 770 x 1710 x 490 - 950mm 67kgs
EC5320/VAQ Electric with Electric Backrest, Hand Switch, Aquamarine 770 x 1710 x 490 - 950mm 69.3kgs
EC5320/VBB Electric with Electric Backrest, Hand Switch, Bristol Blue 770 x 1710 x 490 - 950mm 69.3kgs
EC5320/VCB Electric with Electric Backrest, Hand Switch, Coastal Blue 770 x 1710 x 490 - 950mm 69.3kgs
EC5320/VCH Electric with Electric Backrest, Hand Switch, Chocolate 770 x 1710 x 490 - 950mm 69.3kgs
EC5320/VFR Electric with Electric Backrest, Hand Switch, Flame Red 770 x 1710 x 490 - 950mm 69.3kgs
EC5320/VGH Electric with Electric Backrest, Hand Switch, Graphite 770 x 1710 x 490 - 950mm 69.3kgs
EC5320/VLI Electric with Electric Backrest, Hand Switch, Lime 770 x 1710 x 490 - 950mm 69.3kgs
EC5320/VOB Electric with Electric Backrest, Hand Switch, Onyx Black 770 x 1710 x 490 - 950mm 69.3kgs
EC5320/VPE Electric with Electric Backrest, Hand Switch, Peach 770 x 1710 x 490 - 950mm 69.3kgs
EC5320/VSD Electric with Electric Backrest, Hand Switch, Sand Dune 770 x 1710 x 490 - 950mm 69.3kgs
EC5325/VAQ Electric with Electric Backrest, Foot Switch, Aquamarine 770 x 1710 x 490 - 950mm 69.3kgs
EC5325/VBB Electric with Electric Backrest, Foot Switch, Bristol Blue 770 x 1710 x 490 - 950mm 69.3kgs
EC5325/VCB Electric with Electric Backrest, Foot Switch, Coastal Blue 770 x 1710 x 490 - 950mm 69.3kgs
EC5325/VCH Electric with Electric Backrest, Foot Switch, Chocolate 770 x 1710 x 490 - 950mm 69.3kgs
EC5325/VFR Electric with Electric Backrest, Foot Switch, Flame Red 770 x 1710 x 490 - 950mm 69.3kgs
EC5325/VGH Electric with Electric Backrest, Foot Switch, Graphite 770 x 1710 x 490 - 950mm 69.3kgs
EC5325/VLI Electric with Electric Backrest, Foot Switch, Lime 770 x 1710 x 490 - 950mm 69.3kgs
EC5325/VOB Electric with Electric Backrest, Foot Switch, Onyx Black 770 x 1710 x 490 - 950mm 69.3kgs
EC5325/VPE Electric with Electric Backrest, Foot Switch, Peach 770 x 1710 x 490 - 950mm 69.3kgs
EC5325/VSD Electric with Electric Backrest, Foot Switch, Sand Dune 770 x 1710 x 490 - 950mm 69.3kgs
Specification Sheet Specification Sheet
FEATURES
  • BS 2838-2: 1991 Examination & general treatment couches, build, performance & safety specifications
  • EN 60601-1:2006+A12:2014 Medical electrical equipment. General requirements for basic safety & essential performance
  • Electric or hydraulic height adjustment
  • Height adjustment from 490 - 950mm
  • Adjustable angle backrest
    • Manual -25 to +90 degrees
    • Electric -22 to +90 degrees
  • Adjustable angle footrest from -90 to +10 degrees
  • Anti-trap gas struts fitted with release levers used on the back & footrest sections (optional electric backrest)
  • Retractable castors fitted to both ends to assist with movement & positioning
  • One adjustable foot fitted to allow levelling on uneven floors
  • Clearance beneath frame allows access for mobile hoists
  • Electric models (230V ~, 50/60H) fitted with a UK 3 pin plug & available with a hand or foot switch
  • Hydraulic models use a foot pump pedal positioned on both sides of the couch
  • Seamless upholstery using flame retardant anti-microbial vinyl
  • Adjustable polyurethane phlebotomy armrests
  • Side support loops assist with patient mount & dismount (self-assembly)
  • Paper roll holder (suitable for rolls max 510mm wide x 200mm diameter)
  • Frames prepared to accept optional accessories
  • Maximum capacity 225kg
OVERALL DIMENSIONS (w x d x h)
  • 770 x 1710 x 490 - 950mm
STANDARD COLOURS
  • Paint - White
  • Vinyl - Bristol Blue



Accessories
