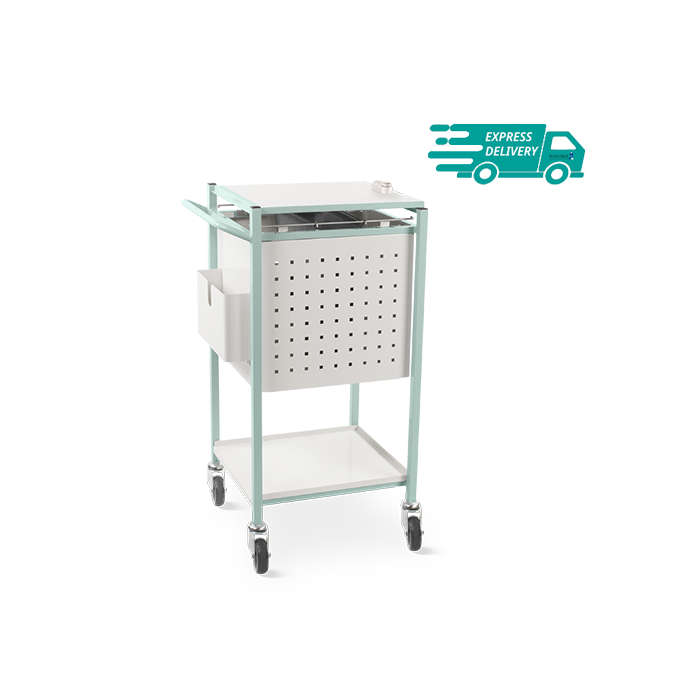

Medical Records Trolleys - Ward

FEATURES
  • Suitable for use with our popular narrow filing pockets (order separately)
  • Filing capacity
    • Small - 470mm
    • Medium - 690mm
    • Large - 990mm
  • Locking lid/s act as a work surface when open & is fitted with either a…
    • CAM Lock - Supplied with two keys
    • Electronic Push Button Lock - Programmable four-digit code
  • Maximum load on locking lid/s - 2.0kg
  • Document pocket/s fitted to end of trolley
  • Optional ring buffers offer protection to both the trolley & fabric of the building (increases length & width of trolley by approx. 80mm)
  • 100mm pressed steel castors
OVERALL DIMENSIONS (w x d x h)
  • Small - 628 x 539 x 1069mm (width open - 1012mm)
  • Medium - 922 x 539 x 1069mm (width open - 1424mm)
  • Large - 1222 x 539 x 1069mm (width open - 2028mm)
STANDARD COLOURS
  • Paint - Spearmint / Grey White
  • Locking Lid/s - Grey White



Code Description Overall Dimensions (W x D x H) Weight Enquiry
MRT/WA/S/CAM Small, CAM Lock 628 x 539 x 1069mm 23.6kgs
MRT/WA/M/CAM Medium, CAM Lock 922 x 539 x 1069mm 29.6kgs
MRT/WA/L/CAM Large, CAM Lock 1222 x 539 x 1069mm 36.8kgs
MRT/WA/S/EPB Small, Electronic Push Button Lock 628 x 539 x 1069mm 23.6kgs
MRT/WA/M/EPB Medium, Electronic Push Button Lock 922 x 539 x 1069mm 29.6kgs
MRT/WA/L/EPB Large, Electronic Push Button Lock 1222 x 539 x 1069mm 36.8kgs
Specification Sheet Specification Sheet
