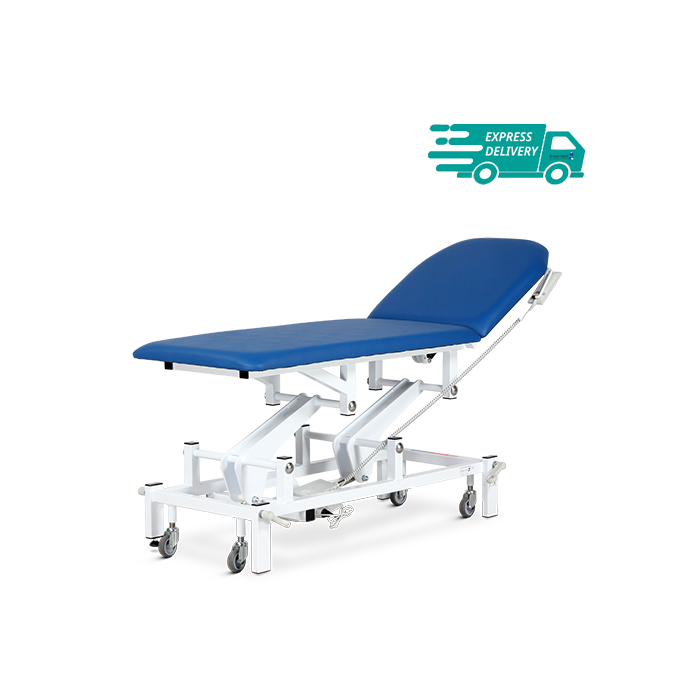

Examination & Treatment Couch, Two Section

Code Description Overall Dimensions (W x D x H) Weight Enquiry
EC1205/VAQ Variable Height, Two Section, Hydraulic, Aquamarine 630 x 1790 x 490-950mm 68.8kgs
EC1205/VBB Variable Height, Two Section, Hydraulic, Bristol Blue 630 x 1790 x 490-950mm 68.8kgs
EC1205/VCB Variable Height, Two Section, Hydraulic, Coastal Blue 630 x 1790 x 490-950mm 68.8kgs
EC1205/VCH Variable Height, Two Section, Hydraulic, Chocolate 630 x 1790 x 490-950mm 68.8kgs
EC1205/VFR Variable Height, Two Section, Hydraulic, Flame Red 630 x 1790 x 490-950mm 68.8kgs
EC1205/VGH Variable Height, Two Section, Hydraulic, Graphite 630 x 1790 x 490-950mm 68.8kgs
EC1205/VLI Variable Height, Two Section, Hydraulic, Lime 630 x 1790 x 490-950mm 68.8kgs
EC1205/VOB Variable Height, Two Section, Hydraulic, Onyx Black 630 x 1790 x 490-950mm 68.8kgs
EC1205/VPE Variable Height, Two Section, Hydraulic, Peach 630 x 1790 x 490-950mm 68.8kgs
EC1205/VSD Variable Height, Two Section, Hydraulic, Sand Dune 630 x 1790 x 490-950mm 68.8kgs
EC1210/VAQ Variable Height, Two Section, Electric, Handswitch, Aquamarine 630 x 1790 x 490-950mm 68.8kgs
EC1210/VBB Variable Height, Two Section, Electric, Handswitch, Bristol Blue 630 x 1790 x 490-950mm 68.8kgs
EC1210/VCB Variable Height, Two Section, Electric, Handswitch, Coastal Blue 630 x 1790 x 490-950mm 68.8kgs
EC1210/VCH Variable Height, Two Section, Electric, Handswitch, Chocolate 630 x 1790 x 490-950mm 68.8kgs
EC1210/VFR Variable Height, Two Section, Electric, Handswitch, Flame Red 630 x 1790 x 490-950mm 68.8kgs
EC1210/VGH Variable Height, Two Section, Electric, Handswitch, Graphite 630 x 1790 x 490-950mm 68.8kgs
EC1210/VLI Variable Height, Two Section, Electric, Handswitch, Lime 630 x 1790 x 490-950mm 68.8kgs
EC1210/VOB Variable Height, Two Section, Electric, Handswitch, Onyx Black 630 x 1790 x 490-950mm 68.8kgs
EC1210/VPE Variable Height, Two Section, Electric, Handswitch, Peach 630 x 1790 x 490-950mm 68.8kgs
EC1210/VSD Variable Height, Two Section, Electric, Handswitch, Sand Dune 630 x 1790 x 490-950mm 68.8kgs
EC1215/VAQ Variable Height, Two Section, Electric, Footswitch, Aquamarine 630 x 1790 x 490-950mm 68.8kgs
EC1215/VBB Variable Height, Two Section, Electric, Footswitch, Bristol Blue 630 x 1790 x 490-950mm 68.8kgs
EC1215/VCB Variable Height, Two Section, Electric, Footswitch, Coastal Blue 630 x 1790 x 490-950mm 68.8kgs
EC1215/VCH Variable Height, Two Section, Electric, Footswitch, Chocolate 630 x 1790 x 490-950mm 68.8kgs
EC1215/VFR Variable Height, Two Section, Electric, Footswitch, Flame Red 630 x 1790 x 490-950mm 68.8kgs
EC1215/VGH Variable Height, Two Section, Electric, Footswitch, Graphite 630 x 1790 x 490-950mm 68.8kgs
EC1215/VLI Variable Height, Two Section, Electric, Footswitch, Lime 630 x 1790 x 490-950mm 68.8kgs
EC1215/VOB Variable Height, Two Section, Electric, Footswitch, Onyx Black 630 x 1790 x 490-950mm 68.8kgs
EC1215/VPE Variable Height, Two Section, Electric, Footswitch, Peach 630 x 1790 x 490-950mm 68.8kgs
EC1215/VSD Variable Height, Two Section, Electric, Footswitch, Sand Dune 630 x 1790 x 490-950mm 68.8kgs
EC1220/VAQ Variable Height, Two Section, Electric, Electric Backrest, Handswitch, Aquamarine 630 x 1790 x 490-950mm 71.1kgs
EC1220/VBB Variable Height, Two Section, Electric, Electric Backrest, Handswitch, Bristol Blue 630 x 1790 x 490-950mm 71.1kgs
EC1220/VCB Variable Height, Two Section, Electric, Electric Backrest, Handswitch, Coastal Blue 630 x 1790 x 490-950mm 71.1kgs
EC1220/VCH Variable Height, Two Section, Electric, Electric Backrest, Handswitch, Chocolate 630 x 1790 x 490-950mm 71.1kgs
EC1220/VFR Variable Height, Two Section, Electric, Electric Backrest, Handswitch, Flame Red 630 x 1790 x 490-950mm 71.1kgs
EC1220/VGH Variable Height, Two Section, Electric, Electric Backrest, Handswitch, Graphite 630 x 1790 x 490-950mm 71.1kgs
EC1220/VLI Variable Height, Two Section, Electric, Electric Backrest, Handswitch, Lime 630 x 1790 x 490-950mm 71.1kgs
EC1220/VOB Variable Height, Two Section, Electric, Electric Backrest, Handswitch, Onyx Black 630 x 1790 x 490-950mm 71.1kgs
EC1220/VPE Variable Height, Two Section, Electric, Electric Backrest, Handswitch, Peach 630 x 1790 x 490-950mm 71.1kgs
EC1220/VSD Variable Height, Two Section, Electric, Electric Backrest, Handswitch, Sand Dune 630 x 1790 x 490-950mm 71.1kgs
EC1225/VAQ Variable Height, Two Section, Electric, Electric Backrest, Footswitch, Aquamarine 630 x 1790 x 490-950mm 71.1kgs
EC1225/VBB Variable Height, Two Section, Electric, Electric Backrest, Footswitch, Bristol Blue 630 x 1790 x 490-950mm 71.1kgs
EC1225/VCB Variable Height, Two Section, Electric, Electric Backrest, Footswitch, Coastal Blue 630 x 1790 x 490-950mm 71.1kgs
EC1225/VCH Variable Height, Two Section, Electric, Electric Backrest, Footswitch, Chocolate 630 x 1790 x 490-950mm 71.1kgs
EC1225/VFR Variable Height, Two Section, Electric, Electric Backrest, Footswitch, Flame Red 630 x 1790 x 490-950mm 71.1kgs
EC1225/VGH Variable Height, Two Section, Electric, Electric Backrest, Footswitch, Graphite 630 x 1790 x 490-950mm 71.1kgs
EC1225/VLI Variable Height, Two Section, Electric, Electric Backrest, Footswitch, Lime 630 x 1790 x 490-950mm 71.1kgs
EC1225/VOB Variable Height, Two Section, Electric, Electric Backrest, Footswitch, Onyx Black 630 x 1790 x 490-950mm 71.1kgs
EC1225/VPE Variable Height, Two Section, Electric, Electric Backrest, Footswitch, Peach 630 x 1790 x 490-950mm 71.1kgs
EC1225/VSD Variable Height, Two Section, Electric, Electric Backrest, Footswitch, Sand Dune 630 x 1790 x 490-950mm 71.1kgs
Specification Sheet Specification Sheet
FEATURES
  • BS 2838-2: 1991 Examination & general treatment couches, build, performance & safety specifications
  • EN 60601-1:2006+A12:2014 Medical electrical eqipment. General requirements for basic safety & essential performance
  • Electric or hydraulic height adjustment
  • Height adjustment from 490 - 950mm
  • Adjustable angle backrest
    • Manual -25 to +90 degrees
    • Electric -22 to +90 degrees
  • Anti-trap gas strut fitted with a release lever used on the backrest section (optional electric)
  • Retractable castors fitted to both ends to assist with movement & positioning
  • One adjustable foot fitted to allow levelling on uneven floors
  • Clearance beneath frame allows access for mobile hoists
  • Electric models (230V ~, 50/60H) fitted with a UK 3 pin plug & available with either a hand or foot switch
  • Hydraulic models use a foot pump pedal positioned on both sides of the couch
  • Seamless & contoured upholstery using flame retardant & anti-bacterial vinyl
  • Frames prepared to accept optional accessories
  • Maximum capacity 225kg
OVERALL DIMENSIONS (w x d x h)
  • 630 x 1790 x 490-950mm
STANDARD COLOURS
  • Paint - White
  • Vinyl - Bristol Blue (See chart for alternative upholstery colours)



Accessories
