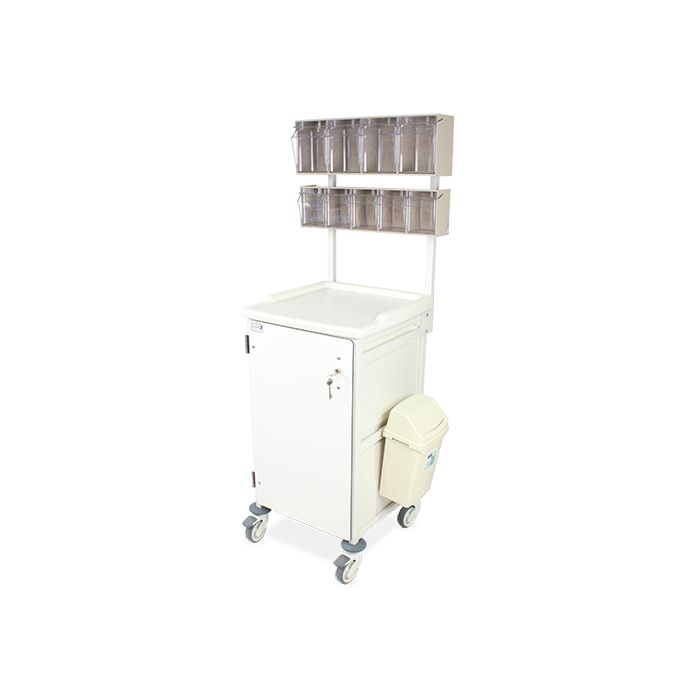

Caretray Trolley - Anaesthesia

FEATURES
  • Trolleys suitable for use with Anaesthesia
  • Quick & easy disassembly, assists thorough & deep cleaning
  • Fully welded mild steel frame
  • Recyclable polypropylene one-piece top & side panels, smooth surfaces & radiused edges assists cleaning (compatible with steam cleaning)
    • Top Panel - Raised edges on three sides provide defined grab points to act as push handles, whilst an integral rim at the front contains spillages (max load 30kg)
    • Side Panels - Incorporate runners with positive stops preventing trays from being accidentally withdrawn
  • Carerails fitted to either side support a wide range of accessories
  • Solid grade laminate door & back panel providing security for the contents of the trays
  • Two locking options…
    • High Security Bolt Lock - Supplied with two keys
    • Electronic Push Button Lock - Programmable four-digit code
  • Trolley pre-configured with the following accessories…
    • Overbridge, Mild Steel
    • Four Compartment Tilt Bin, Mild Steel
    • Five Compartment Tilt Bin, Mild Steel
    • Waste Bin & Bracket, 8 Litre
  • Translucent, impact-resistant trays & dividers, smooth surfaces & radiused edges assists cleaning (compatible with steam cleaning / high temperature machine washing)
  • Trays feature an integral handle with a plastic clip-on label cover (coloured label strips supplied - white, blue, green, yellow & red)
  • Each tray supplied with 2 x long & 2 x short dividers
  • Max load per tray 5kg
  • Polyurethane ring buffers offer protection to both the trolley & fabric of the building
  • 100mm polymer castors, 2 off braking
DIMENSIONS (w x d x h)
  • Overall Dimensions - 550 x 550 x 993mm
  • Overall Dimensions (with Overbridge) - 600 x 550 x 1620mm
  • Plastic Top - 455 x 455 (internal) at height 968mm
  • Trays
    • Shallow Tray - 355 x 405 x 100mm (internal)
    • Deep Tray - 355 x 405 x 150mm (internal)
STANDARD COLOURS
  • Paint - Grey White



Code Description Express Delivery? Overall Dimensions (W x D x H) Shelf Configurations Weight Enquiry
CTANAEM1/10/3S2D/HSB 3 x 100mm, 2 x 150mm Trays, High Security Bolt Lock 550 x 550 x 993mm 3 x 100mm, 2 x 150mm Trays 41.4kgs
CTANAEM1/10/4S1D/HSB 4 x 100mm, 1 x 150mm Trays, High Security Bolt Lock 550 x 550 x 993mm 4 x 100mm, 1 x 150mm Trays 41.1kgs
CTANAEM1/10/6S/HSB 6 x 100mm Trays, High Security Bolt Lock 550 x 550 x 993mm 6 x 100mm Trays 42.2kgs
CTANAEM1/10/3S2D/EPB 3 x 100mm, 2 x 150mm Trays, Electronic Push Button Lock 550 x 550 x 993mm 3 x 100mm, 2 x 150mm Trays 41.1kgs
CTANAEM1/10/4S1D/EPB 4 x 100mm, 1 x 150mm Trays, Electronic Push Button Lock 550 x 550 x 993mm 4 x 100mm, 1 x 150mm Trays 41.1kgs
CTANAEM1/10/6S/EPB 6 x 100mm Trays, Electronic Push Button Lock 550 x 550 x 993mm 6 x 100mm Trays 41.1kgs
