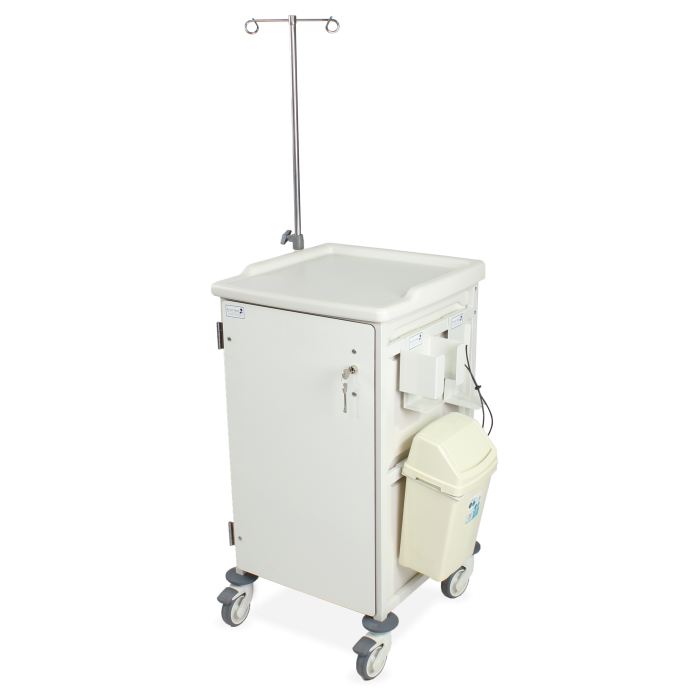

Caretray Trolley - IV Preparation
Caretray Trolley - IV Preparation

Caretray Trolley - IV Preparation

FEATURES

Trolleys designed for use when preparing & administering intravenous infusions
Quick & easy disassembly, assists thorough & deep cleaning
Fully welded mild steel frame
Recyclable polypropylene one-piece top & side panels, smooth surfaces & radiused edges assists cleaning (compatible with steam cleaning)
- Top Panel - Raised edges on three sides provide defined grab points to act as push handles, whilst an integral rim at the front contains spillages (max load 30kg)
- Side Panels - Incorporate runners with positive stops preventing trays from being accidentally withdrawn
Carerails fitted to either side support a wide range of accessories
Solid grade laminate door & back panel providing security for the contents of the trays
Two locking options…
- High Security Bolt Lock - Supplied with two keys
- Electronic Push Button Lock - Programmable four-digit code
Trolley pre-configured with the following accessories…
- Infusion Pole & Bracket
- Waste Bin & Bracket, 8 Litre
- Glove / Mask Box Holder, One Box
- Sharps Box Holder
Translucent, impact-resistant trays & dividers, smooth surfaces & radiused edges assists cleaning (compatible with steam cleaning / high temperature machine washing)
Trays feature an integral handle with a plastic clip-on label cover (coloured label strips supplied - white, blue, green, yellow & red)
1Each tray supplied with 2 x long & 2 x short dividers
Max load per tray 5kg
Polyurethane ring buffers offer protection to both the trolley & fabric of the building
100mm polymer castors, 2 off braking

DIMENSIONS (w x d x h)

Overall Dimensions - 550 x 550 x 993mm
Overall Dimensions (with Overbridge) - 600 x 550 x 1620mm
Plastic Top - 455 x 455 (internal) at height 968mm
Trays
- Shallow Tray - 355 x 405 x 100mm (internal)
- Deep Tray - 355 x 405 x 150mm (internal)

STANDARD COLOURS

Paint - Grey White

View the full range:

Procedure Trolleys & Carts Caretray Trolley - IV Preparation

Download Product PDF

Need Advice? Contact Us

Code	Description	Overall Dimensions (W x D x H)	Enquiry
CTIVPRM1/10/3S2D/HSB	3 x 100mm, 2 x 150mm Trays, High Security Bolt Lock	550 x 550 x 993mm	Quantity Input
CTIVPRM1/10/4S1D/HSB	4 x 100mm, 1 x 150mm Trays, High Security Bolt Lock	550 x 550 x 993mm	Quantity Input
CTIVPRM1/10/6S/HSB	6 x 100mm Trays, High Security Bolt Lock	550 x 550 x 993mm	Quantity Input
CTIVPRM1/10/3S2D/EPB	3 x 100mm, 2 x 150mm Trays, Electronic Push Button Lock	550 x 550 x 993mm	Quantity Input
CTIVPRM1/10/4S1D/EPB	4 x 100mm, 1 x 150mm Trays, Electronic Push Button Lock	550 x 550 x 993mm	Quantity Input
CTIVPRM1/10/6S/EPB	6 x 100mm Trays, Electronic Push Button Lock	550 x 550 x 993mm	Quantity Input
