Caretray Trolley - Phlebotomy

FEATURES
  • Trolleys designed for use with Phlebotomy
  • Quick & easy disassembly, assists thorough & deep cleaning
  • Available in mild or stainless steel
    • Fully welded mild steel frame
    • Seamlessly welded, one piece 304 grade stainless steel frame
  • Ergonomic push handle fitted to one side of the trolley ensures correct posture & keeps feet away from the frame, ideal for mobile phlebotomy or in cases where the trolley is wheeled for long periods of time
  • Recyclable polypropylene one-piece top & side panels, smooth surfaces & radiused edges assists cleaning (compatible with steam cleaning)
    • Top panel - Raised edges on three sides provide defined grab points to act as push handles, whilst an integral rim at the front contains spillages (max load 30kg)
    • Side panels - Incorporate runners with positive stops preventing trays from being accidentally withdrawn (symmetrical design allows tray insertion from either side)
  • Carerails fitted to either side support a wide range of accessories
  • Available with solid grade laminate door & back panel providing security for the contents of the trays
  • Two locking options...
    • CAM Lock with Wing Handle - Supplied with two keys
    • Electronic Push Button Lock - Programmable four-digit code
  • Trolley pre-configured with the following accessories…
    • Alcohol Gel Holder
    • Debris Bin & Bracket
    • Glove / Mask Box Holder, One Box
    • Sharps Box Holder
  • Translucent, impact-resistant trays & dividers, smooth surfaces & radiused edges assists cleaning (compatible with steam cleaning / high temperature machine washing)
  • Trays feature an integral handle with plastic clip-on label cover (coloured labels supplied - white, blue, green, yellow & red)
  • Each tray supplied with 2 x long & 2 x short dividers
  • Max load per tray 5kg
  • Polyurethane ring buffers offer protection to both the trolley & fabric of the building
  • 100mm polymer castors, 2 off braking
DIMENSIONS (w x d x h)
  • Overall Dimensions - 610 x 550 x 993mm
  • Plastic Top - 455 x 455 (internal) at height 968mm
  • Trays
    • Shallow Tray - 355 x 405 x 100mm (internal)
    • Deep Tray - 355 x 405 x 150mm (internal)
STANDARD COLOURS
  • Paint - Spearmint
Code Description Express Delivery? Overall Dimensions (W x D x H) Weight Enquiry
CTPHLEM1/10/4S1D Mild Steel, 4 x 100mm, 1 x 150mm Trays, No Door 610 x 550 x 993mm 38kgs
CTPHLEM1/10/6S Mild Steel, 6 x 100mm Trays, No Door 610 x 550 x 993mm 39.1kgs

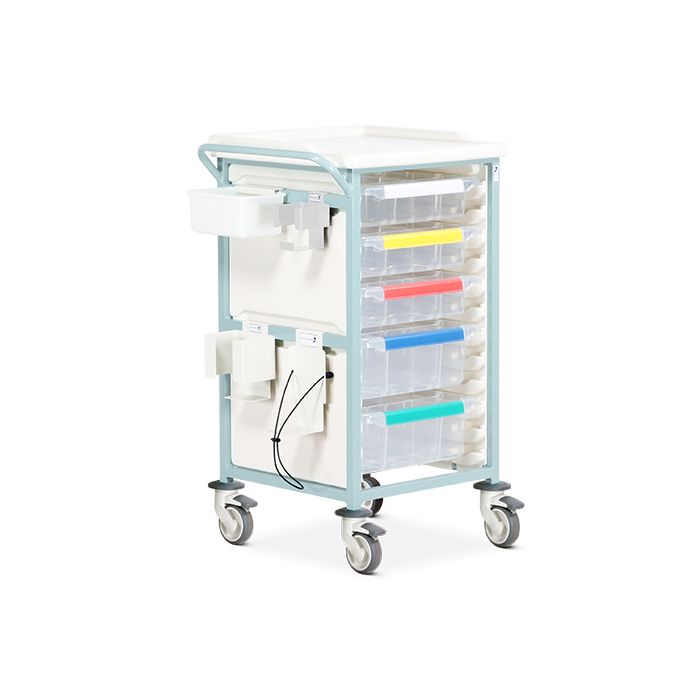

CTPHLEM1/10/3S2D Mild Steel, 3 x 100mm, 2 x 150mm Trays, No Door 610 x 550 x 993mm 38.3kgs
CTPHLEM1/10/4S1D/CA Mild Steel, 4 x 100mm, 1 x 150mm Trays, CAM Lock 610 x 550 x 993mm 38kgs
CTPHLEM1/10/6S/CA Mild Steel, 6 x 100mm Trays, CAM Lock 610 x 550 x 993mm 39.1kgs
CTPHLEM1/10/4S1D/EPB Mild Steel, 4 x 100mm, 1 x 150mm Trays, Electronic Push Button Lock 610 x 550 x 993mm 38kgs
CTPHLEM1/10/6S/EPB Mild Steel, 6 x 100mm Trays, Electronic Push Button Lock 610 x 550 x 993mm 39.1kgs
CTPHLES1/10/3S2D Stainless Steel, 3 x 100mm, 2 x 150mm Trays, No Door 610 x 550 x 993mm 38.3kgs
CTPHLEM1/10/3S2D/CA Mild Steel, 3 x 100mm, 2 x 150mm Trays, CAM Lock 610 x 550 x 993mm 38.3kgs
CTPHLEM1/10/3S2D/EPB Mild Steel, 3 x 100mm, 2 x 150mm Trays, Electronic Push Button Lock 610 x 550 x 993mm 38.3kgs
CTPHLES1/10/3S2D/EPB Stainless Steel, 3 x 100mm, 2 x 150mm Trays, Electronic Push Button Lock 610 x 550 x 993mm 38.3kgs
CTPHLES1/10/3S2D/CA Stainless Steel, 3 x 100mm, 2 x 150mm Trays, CAM Lock 610 x 550 x 993mm 38.3kgs
CTPHLES1/10/4S1D Stainless Steel, 4 x 100mm, 1 x 150mm Trays, No Door 610 x 550 x 993mm 38kgs
CTPHLES1/10/4S1D/CA Stainless Steel, 4 x 100mm, 1 x 150mm Trays, CAM Lock 610 x 550 x 993mm 38kgs
CTPHLES1/10/4S1D/EPB Stainless Steel, 4 x 100mm, 1 x 150mm Trays, Electronic Push Button Lock 610 x 550 x 993mm 38kgs
CTPHLES1/10/6S Stainless Steel, 6 x 100mm Trays, No Door 610 x 550 x 993mm 39.1kgs
CTPHLES1/10/6S/CA Stainless Steel, 6 x 100mm Trays, CAM Lock 610 x 550 x 993mm 39.1kgs
CTPHLES1/10/6S/EPB Stainless Steel, 6 x 100mm Trays, Electronic Push Button Lock 610 x 550 x 993mm 39.1kgs
Specification Sheet Specification Sheet
